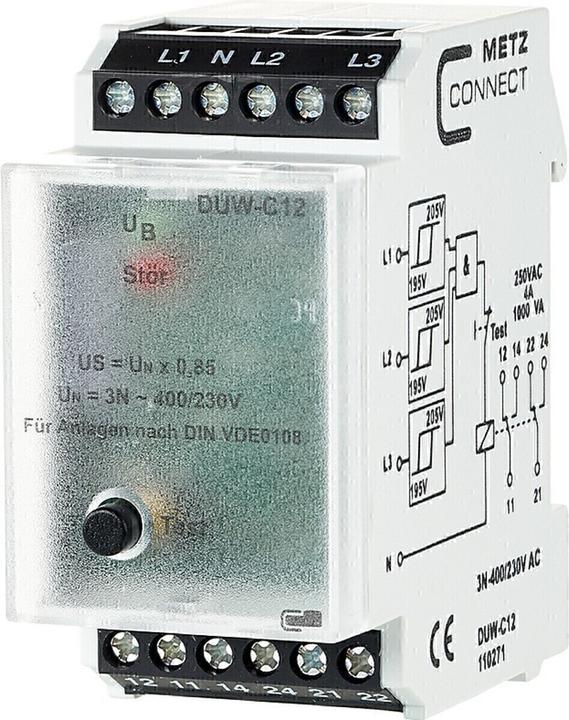

Metz Connect Network Monitoring DUW-C12 3x230V

Manufacturer: Metz Connect
Description: Network Monitoring
Type: DUW-C12 3x230V
Electrical connection type: Screw connection
With removable terminals: no
Type of supply voltage: AC
Supply voltage at AC 50 Hz: 230 V
Phase sequence monitoring function: no
Phase failure detection function: yes
Under-voltage detection function: yes
Over-voltage detection function: no
Asymmetry detection function: no
Voltage measurement range: 400 V
Number of contacts as changeover: 2
Operating voltage at AC 50 Hz: 230 V
Width: 35 mm
Height: 70 mm
Depth: 65 mm

Additional details: Under-voltage monitoring in three-phase networks (each phase against neutral) with fixed set threshold, fixed set hysteresis, and integrated test button. It has been specifically designed for emergency lighting systems according to DIN VDE 0108. The device can also be used to monitor a single phase. All unoccupied inputs must be connected to the connected phase. If there is a back voltage caused by the load that exceeds the set threshold, no fault message will occur.

Good indication: Relay is energized (contacts 11-14 and 21-24 closed), LED is off.
Fault indication: Relay has dropped out (contacts 11-14 and 21-24 open), LED is on.
Button press: Relay drops back (contacts 11-14 and 21-24 open), LED lights up.
Connection with screw terminals.
