MSI PRO B860M-A WIFI
Socket S1, Intel B860, mATXPrice in EUR including VAT, free shipping
Delivered between Tue, 20.5. and Thu, 22.5.
10 items in stock at supplier
10 items in stock at supplier
Product details

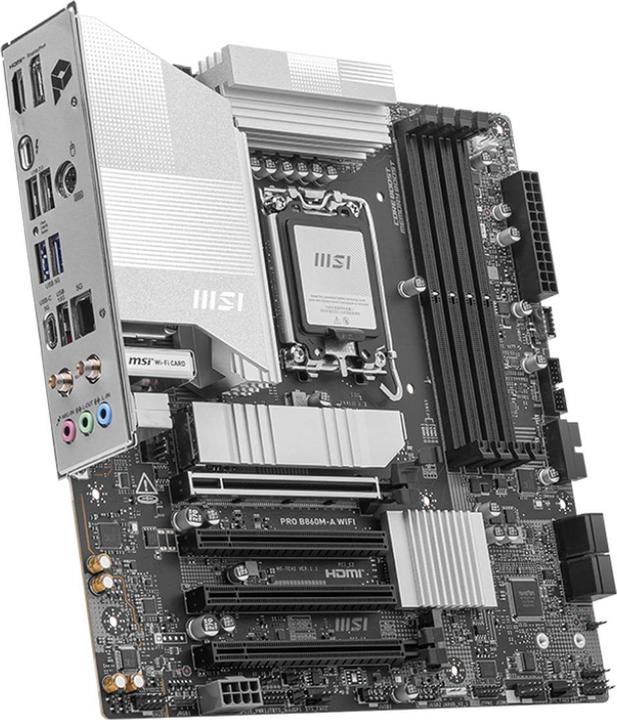

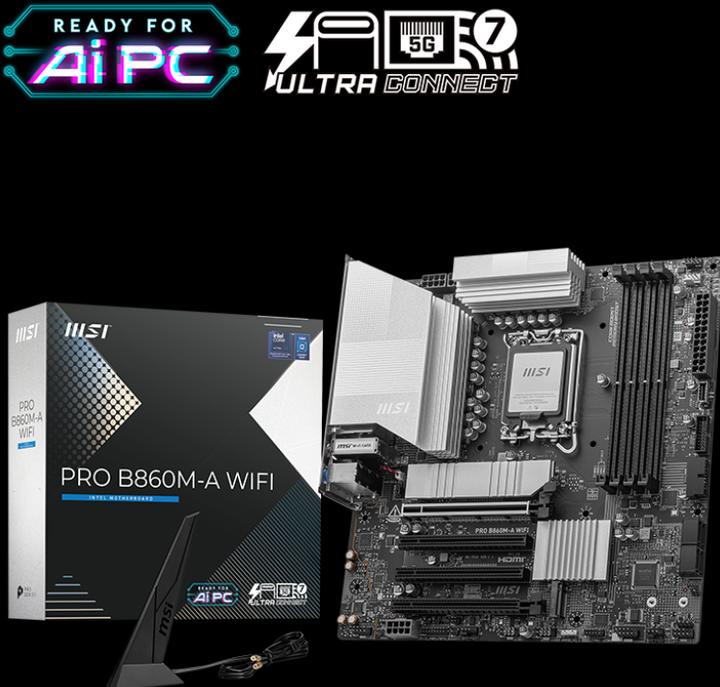

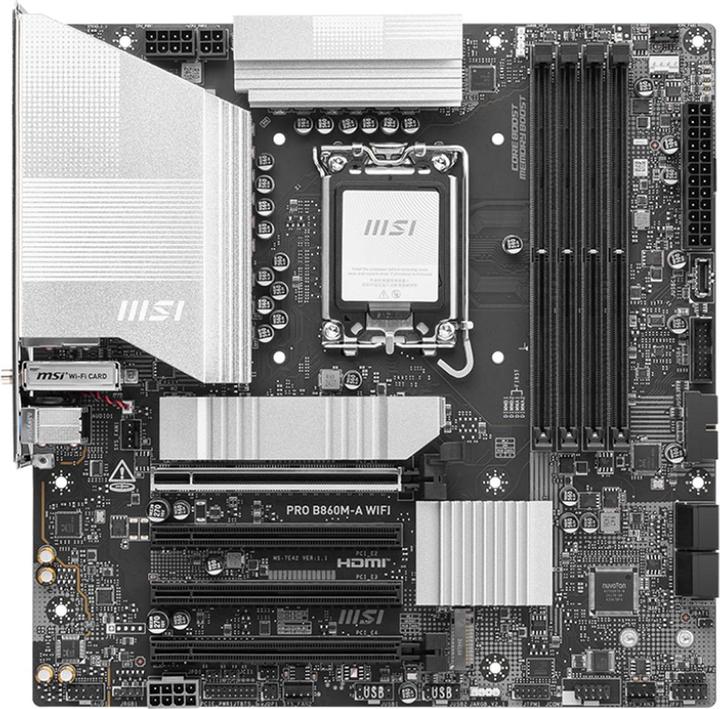

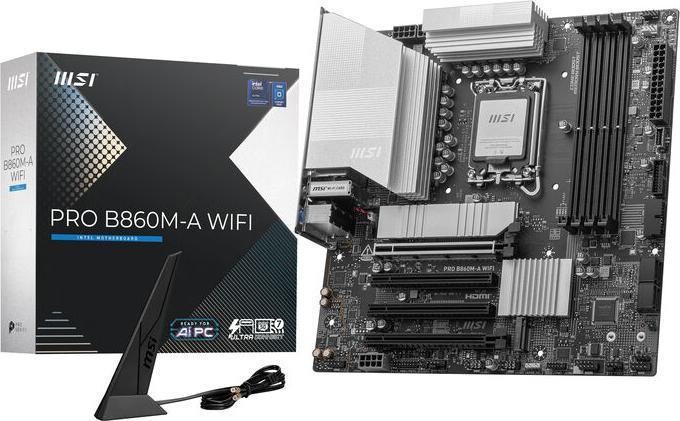

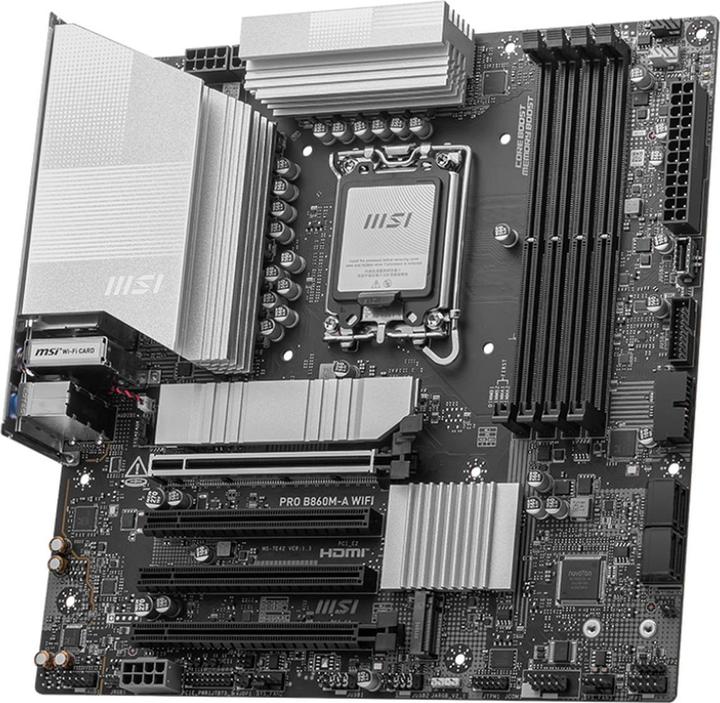

The Pro B860M-A WiFi offers a simple design with a harmonious silver colour scheme that perfectly matches white and black PC builds. It is equipped with many MSI exclusive functions, including true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 and additional PCIe power supply, ready for Intel Core Ultra processors.
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | RGB header |
Item number | 53472969 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E42-002R |
Release date | 3.12.2024 |
Form factor | Micro ATX (mATX) |
Socket | Socket S1 |
Chipset | Intel B860 |
Mainboard features | RGB header |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8800 MHz |
Supported memory speed | 4800 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 5 Gigabit Ethernet (1x) |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 1 |

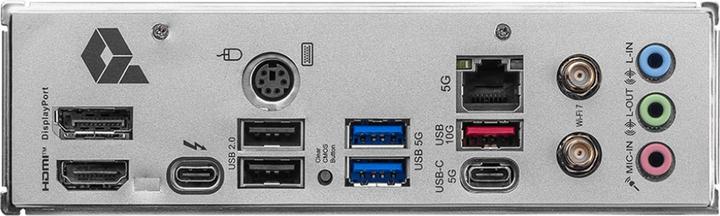

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 1 (1x) |
Country of origin | China, Germany, Taiwan |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 243.84 mm |
Width | 243.84 mm |
Weight | 1410 g |
Length | 27 cm |
Width | 28 cm |
Height | 7 cm |
Weight | 1.41 kg |
