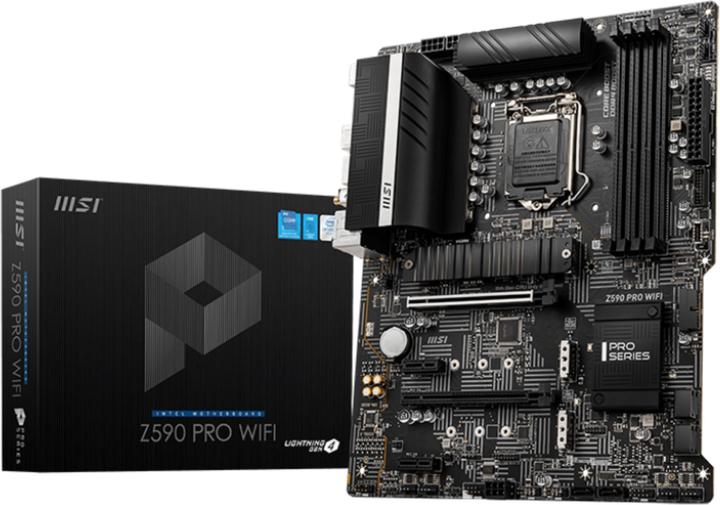

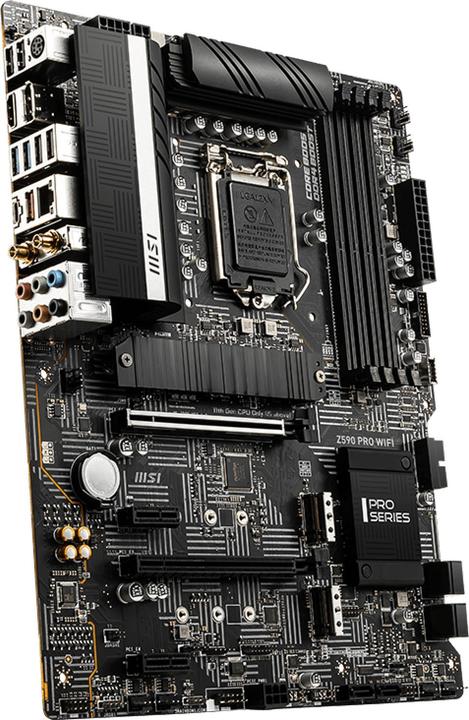

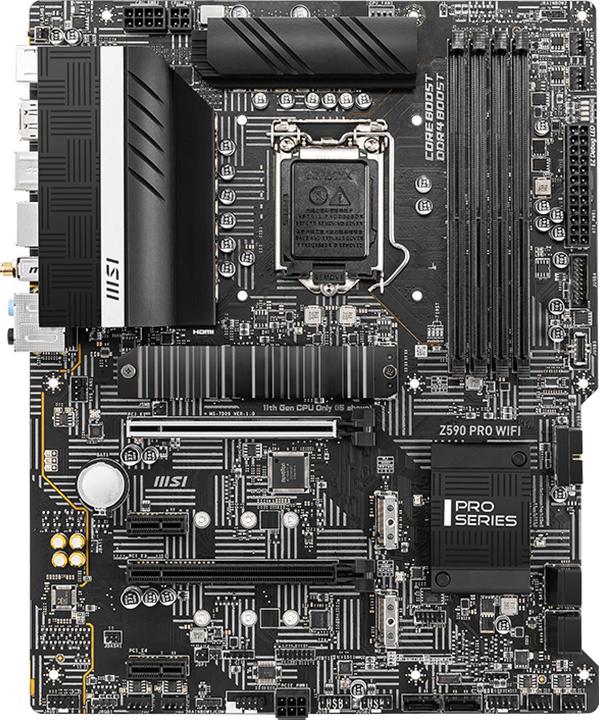

MSI Z590 PRO WIFI
LGA 1200, Intel Z590, ATXProduct details
The Z590 Pro WiFi is equipped with the Z590 chipset and is suitable for Intel processors with socket 1200. The motherboard supports PCIe 4.0 with 11th generation Intel CPUs and allows overclocking of free multiplier models. With its ATX form factor, the Z590 Pro WiFi fills the motherboard trays of common cases and offers numerous expansion options.The motherboard offers a simple but functional design that also looks good in cases with side windows. Thanks to an optimized power supply with 12+2 virtual phases and extensive cooling, the Z590 Pro WiFi is ideal for overclocking.Aluminum in silver and black, combined with the clean lines, provides a technical look. The luxury mainboard offers additional connectors for RGB accessories. MSI Mystic Light serves as the interface for control and synchronization.
Processor family | Celeron, Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 SATA (3x), S-ATA III (6x) |
Wireless transmission | Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 14733320 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7D09-001R |
Release date | 18.1.2021 |
Form factor | ATX |
Socket | LGA 1200 |
Chipset | Intel Z590 |
Mainboard features | Front panel audio connector |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

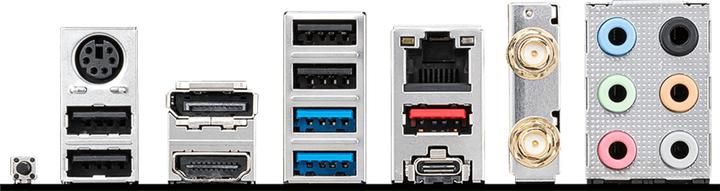

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4 |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
Internal connection options | M.2 SATA (3x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Power connectors | 24-pin ATX |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 345 mm |
Weight | 1200 g |
Length | 34.60 cm |
Width | 27 cm |
Height | 6.70 cm |
Weight | 1.48 kg |
