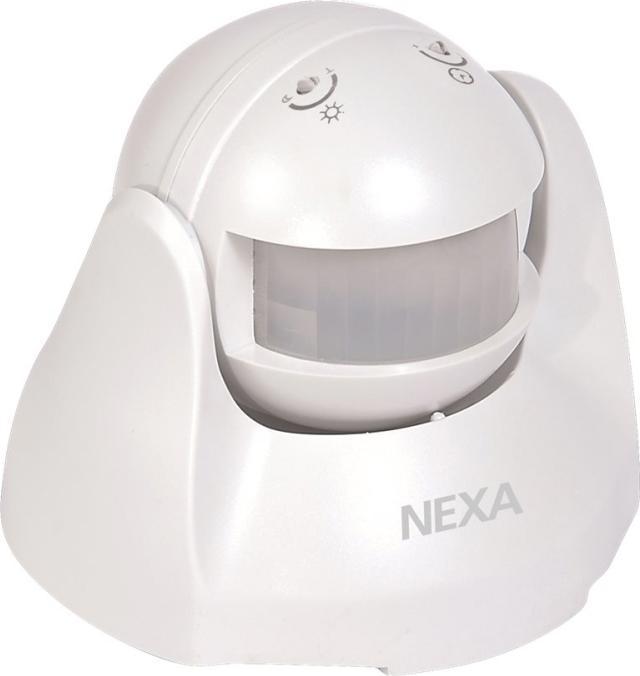

The SP-816 Motion Sensor is a Z-Wave Plus motion detector that operates using passive infrared light (PIR). It can be connected to the Nexa Bridge or another Z-Wave certified control unit. The motion sensor features a tamper alarm, an integrated timer, and the ability to adjust light sensitivity. Z-Wave Plus technology ensures secure communication between devices.

• For monitoring and automation
• Adjustable activation time and light sensitivity
• Tamper alarm and low battery warning
• Can be mounted on walls and ceilings
• Rotatable head for easy installation

Technical specifications:
Power source: Battery, 3x1.5 V AA
Battery life: 1 year with 10 detections/day
Operating temperature: -10° to 50°C
Frequency: Z-Wave (868.42 MHz)
Range: Up to 30 m
Detection range: 10 m, 100° when mounted at 2 m height under 20°C
IP classification: IP44
Dimensions (H x W x D): 95 x 101 x 95 mm
E-number: 1710752
Article No.: 86808.
