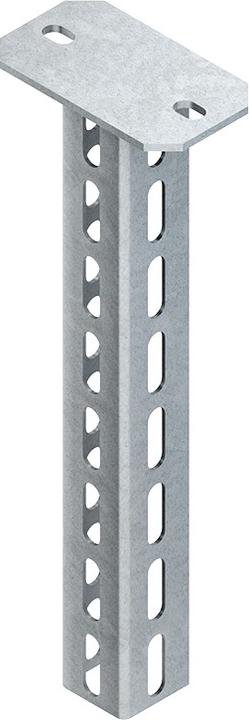

Niedax Hanging Profile HU 5050/800

Manufacturer: Niedax
Designation: Hanging Profile
Type: HU 5050/800
Length: 805 mm
Profile Width: 50 mm
Profile Height: 50 mm
Design: U-Profile
Load Capacity: 4 kN
Suitable for Function Maintenance: yes
Material: Steel
Stainless Steel, Pickled: no
Material Quality: other
Surface Protection: hot-dip galvanized
Operating Temperature: -20 to 120 °C
Weight: 2.38865 kg

Further Details:
Hanging profile, 3-sided continuously perforated U-profile with welded head plate, System HU 5050, for brackets for one, two, and three-sided installation. To prevent deformation of the hanging profile during the installation of brackets, the hanging profile spacer HDS 50.50 F with hexagon screw should be considered for static reasons. When attaching the bracket to the hanging profile on one side, it is preferred that the closed side of the bracket aligns with the profile web of the hanging profile. For static reasons and to enable trouble-free placement of the protective cap, the bracket must be mounted at a distance of 50 mm (bracket lower edge to hanging profile end) above the end of the hanging profile.

For use in function maintenance or for ceilings with fire protection requirements, please observe additional regulations! VDE certified!

For brackets: KTAL, KTAM, KTA, KTAS 100 - 400 (Function Maintenance/KFO), KTA 100 - 600 (Function Maintenance/MLAR)

Dimensions (approx. measurements):
Head Plate L x W x t: 140 x 80 x 5 mm
Mounting Hole: 13 x 20 mm
Center Distance: 100 mm
U-Profile: 50 x 50 x 50 mm
Material Thickness t: 2.5 mm
Three-sided Profile Perforation, single-row: 12 x 30 mm
Center Distance: 50 mm
Total Length L: 805 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339858842.
