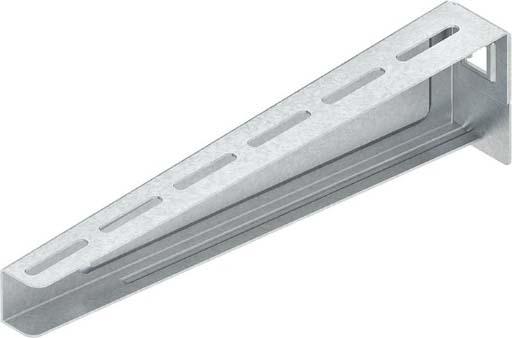

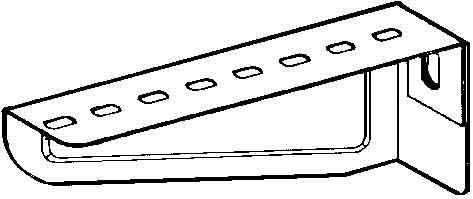

Niedax Hanging Arm and Wall Bracket KTAM 300 F

Manufacturer: Niedax
Description: Hanging Arm and Wall Bracket
Dimensions: 82 x 320 mm
Maximum Safe Working Load according to IEC 61537: 1500 N
Suitable for Cable Tray Width: 50 to 300 mm
Design: Wall and Arm Bracket
Angle: 90 °
Suitable for Function Maintenance: no
Material: Steel
Surface Protection: Hot-dip galvanized
Operating Temperature: -20 to 120 °C

Additional Details:
Medium-duty hanging arm and wall bracket for wall and hanging arm installation, including hot-dip galvanized mounting accessories. The load capacity specifications apply only with adequate anchoring to the supporting substrate or in accordance with regulations for installations on hanging arms. VDE certified!

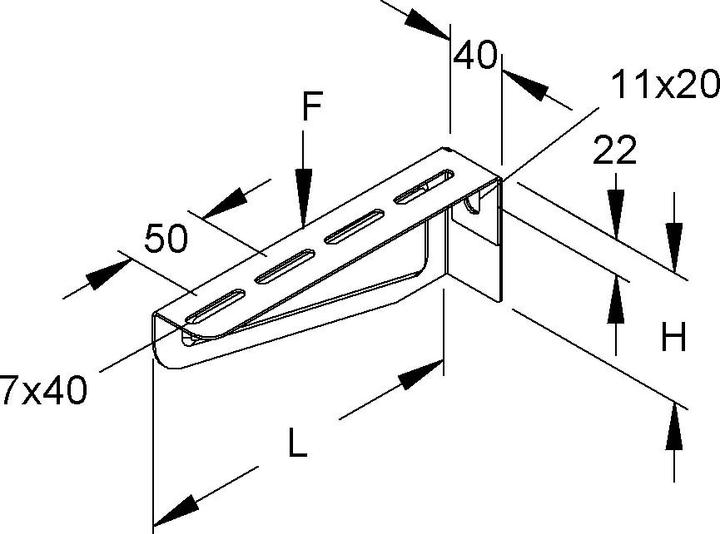

Dimensions (approximate):
Support Height H: 82 mm
Support Length L: 320 mm
Load Capacity F at L/2: 1.5 kN tested in the system
Material of Bracket: Steel, hot-dip galvanized according to DIN EN ISO 1461.
