The VX400 is the successor model to the VX4S-N and offers a complete solution for controlling small to medium-sized LED screens. It is ideal for particularly wide and tall LED displays, as it can control up to 2,600,000 pixels – up to 10,240 pixels in width and 8,192 in height.

The VX400 features numerous video inputs and can seamlessly switch between input sources. It supports two layers for BiB applications (1x main image, 1x BiB), has powerful front-end processing with color correction, and eliminates the need for external scalers. With the "Image Mosaic" function, you can combine up to 4 devices to control large LED screens.

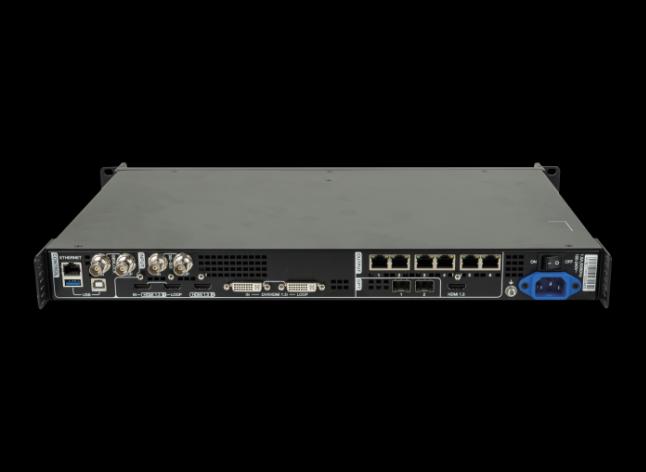

In addition to the built-in sender card with 4 outputs, there are two fiber optic outputs available, allowing you to cover distances beyond the 100-meter limit for Ethernet cables. An additional optical converter is required for controlling LED screens. This can be either one of the separately available Novastar CVT10-M or CVT10-S fiber optic converters or a second VX400 in fiber converter mode. A dedicated input allows you to connect a light sensor for automatic brightness control.

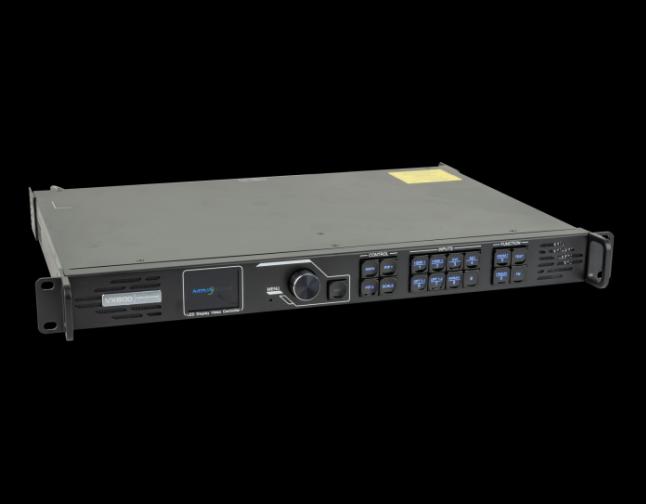

Screen configuration is done via USB and Ethernet. The sleek 1U housing fits perfectly into a 19" rack or flight case, making it ideal for rental and permanent installation.

• Internal scaling function and "Image Mosaic" support
• Supports 3G-SDI, DVI, HDMI 1.3, fiber optic
• BiB function
• Light sensor input
• 4 Ethernet outputs for controlling up to 2,600,000 pixels.
