Gender: Male
Wire size: 24 to 12 AWG
Number of contacts: 40
Connection type: Ribbon cable
Mounting type: DIN rail mounting
Test voltage: 500V AC
Operating voltage: 50V AC, 60V DC
Rated current: 1A
Cable cross section: 0.2 to 4 mm²
Dimensions: 112.5 x 58.5 x 77 mm
Depth: 77 mm
Length: 112.5 mm
Operating temperature min: -20°C

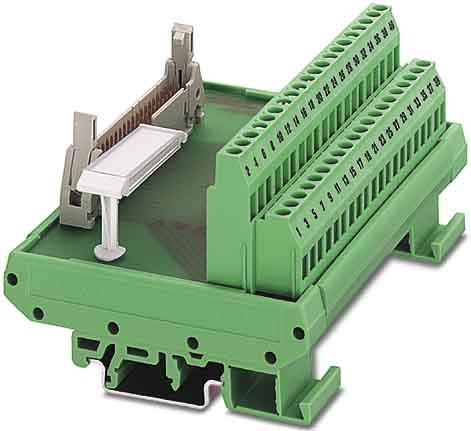

HE10 screw terminal interface modules with connectors for connecting electrical cables to I/O cards and electronic devices. Designed for mounting on standard DIN rails according to BS 5584:1978. Suitable for rails with top hat profile and G-profile. Temperature range: -20°C to +50°C. Suitable cable cross section: (solid) 0.2 to 4 mm², (stranded) 0.2 to 2.5 mm².
