Supply voltage: 24 to 240 Vac/dc
Number of channels: 1
Auxiliary contacts: 2
Function: Speed/Standstill monitoring
Safety category ISO 13849-1: 2
SIL: 3
PL: E
Safety contacts: 2
Connection type: Screw fastening
Width: 45 mm

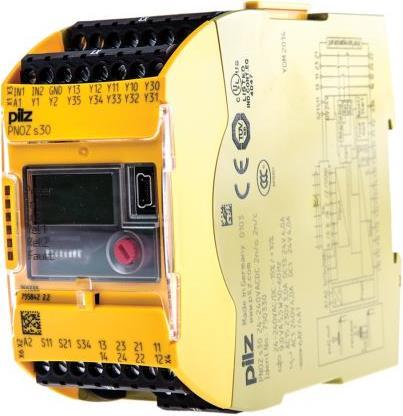

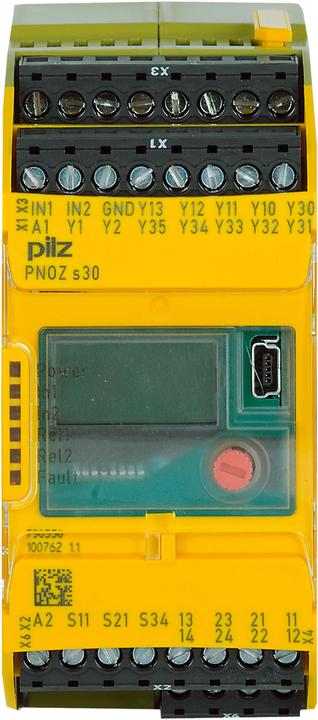

UL/cUL, EC, TÜV, CCC. EN 1088, EN 60204-1, EN 62061, EN 954-1, EN ISO 10218-1, VDI 2854. PNOZ s30 Speed/Standstill monitor. The PNOZ s30 safety relay from Pilz meets a new requirement in the field of drive monitoring, ensuring that the operating status can be safely monitored and maintained when the drive is brought to a standstill (i.e., speed and direction of rotation). The parameters for device functions such as standstill can be defined freely and assigned to an output. Parameters are entered via a rotary knob (press and turn) and displayed on a monochrome display. Set parameters are stored on a chip card. The integrated display shows the set limits/parameters as well as the current speed. Tolerances can be set freely for each limit. Optional axis position monitoring for the standstill function. Extended alarm of a shutdown when a certain threshold is reached.
