Poynting

Poynting A-OMNI-0280-01 - All-Weather OMNI-Directional LTE + 5G SISO Antenna, 698 - 960 and 1710 - 2700 MHz, max. 4 dBi

The OMNI-280-01 antenna offers an innovative solution for enhancing the signal of 5G, 4G, 3G, and 2G networks. It is a unique, wall or mast-mounted, single-polarized LTE antenna that integrates an ultra-wideband element into a single housing.

This antenna is a cost-effective solution for improving signal reception and throughput. The OMNI-280-01 antenna increases signal reliability, provides higher data throughput for users, and offers a stable, high-quality connection. This enhances user experience and secures customer loyalty. It is ideal for all applications utilizing the GSM network (LTE/HSPA/3G/EDGE/GPRS).

Features:

- Omnidirectional antenna with medium gain
- Broadband - covers a wide frequency range
- Magnetic, wall or mast mounting
- Lightweight
- Increases reliability of system transmission

Applications:

- M2M applications where machines and measuring devices need to be connected for real-time monitoring and information transfer (telematics)
- Utility companies for electricity and water metering
- Security industry, where cameras and other security systems are used
- Equipment monitoring
- Retail point-of-sale setups
- Areas with poor data reception (indoor and outdoor)

Electrical Specifications:

- Frequency bands: 698 - 960 MHz; 1710 - 2700 MHz; 3400 - 3800 MHz
- Gain (max.): 4 dBi
- VSWR:
- Input power: 10 W
- Input impedance: 50 Ohm (nominal)
- Polarization: Linear vertical
- Cable loss: 0.47 dB/m at 900 MHz; 0.75 dB/m at 2000 MHz; 0.79 dB/m at 2500 MHz; 0.83 dB/m at 3500 MHz
- DC short-circuit protection: Yes
- Cable length: 1 m
- Cable type: RG58
- Connector: SMA (m)

Mechanical Specifications:

- Product dimensions (L x W):...

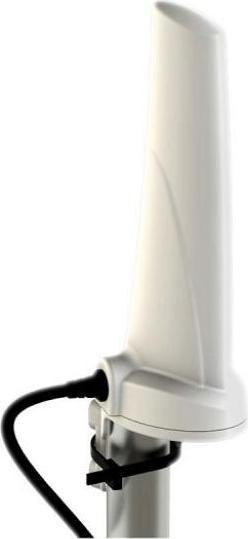

Actual product image Poynting OMNI-280-1 - All Weather OMNI-Directional LTE + 5G SISO Antenna 698-960 & 1710-2700 MHz, max. 4 dBi
