Axra - QuMax XR All In

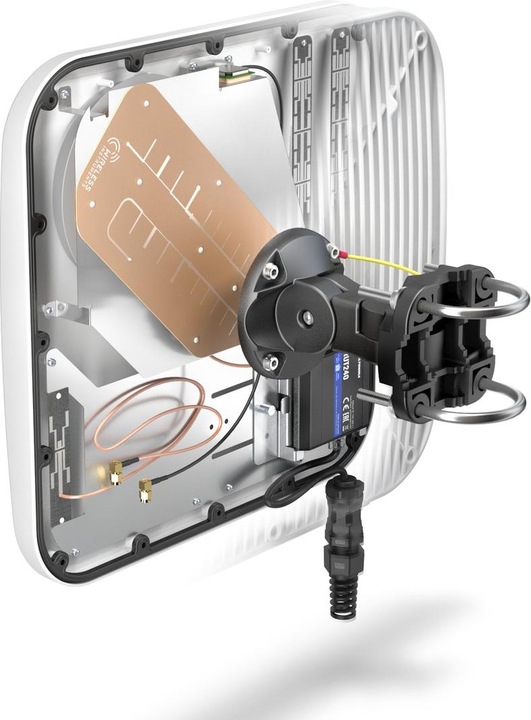

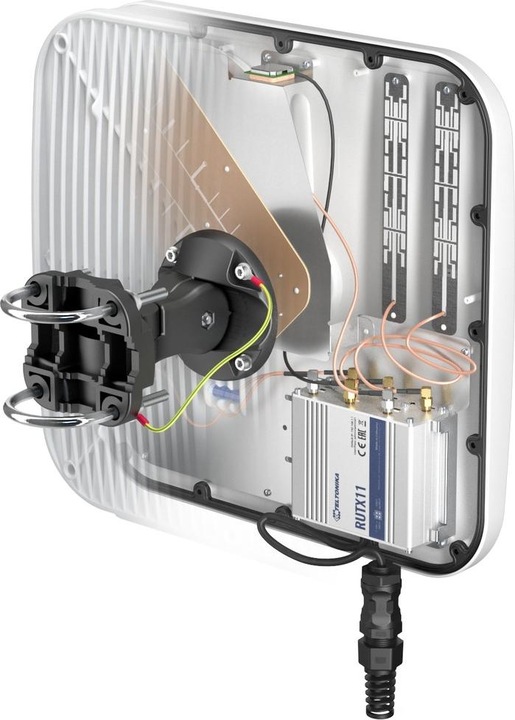

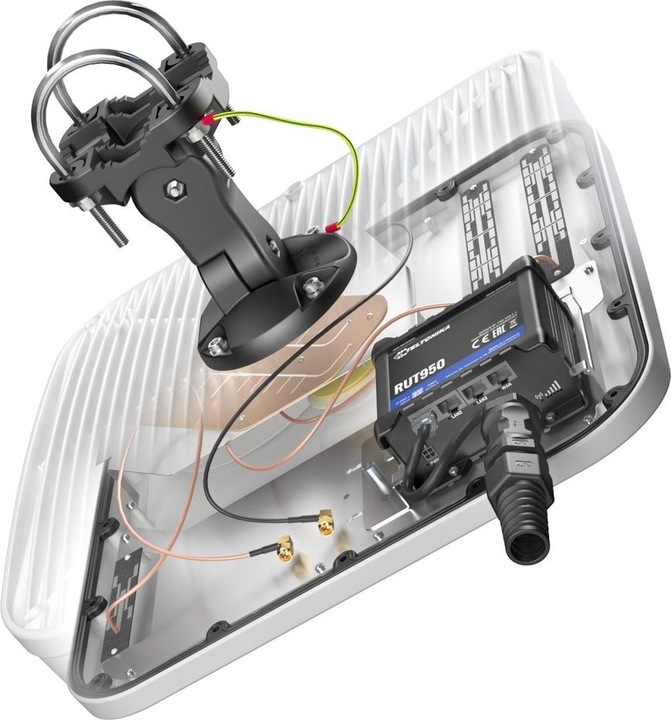

The QuMAX eXtra Range All In offers the most powerful LTE directional antenna among all QuWireless antennas. It is designed for long-distance connections to the base station. Additionally, it features integrated Wi-Fi dual-band omni antennas operating at 2.4 and 5 GHz, a GPS antenna, and a Bluetooth antenna. Axra is designed to accommodate a Teltonika RUT240/950/955/X09/X11 router within its IP67 enclosure. It is the preferred choice for fixed installations in industrial environments. There is also space for mounting internal original Teltonika GPS and Wi-Fi antennas within the enclosure.

LTE Antenna Specifications

• Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz

• Supported LTE/5G Bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

• Gain: 0.694 - 0.96 GHz: 7 dBi; 1.7 - 2.2 GHz: 7 dBi; 2.2 - 2.7 GHz: 7 dBi

• Front-to-back ratio: > 10 dB

• VSWR: < 1.70, max. < 2.00

• Beamwidth: 70°/70° +/- 15°

• Polarization: Dual polarized X-Pol

• Impedance: 50 Ohm

Wi-Fi Antenna Specifications

• Frequency: 2.40 - 2.50 GHz; 4.70 - 6.00 GHz

• Gain: 2.40 - 2.50 GHz: 6 dBi; 4.70 - 6.00 GHz: 7 dBi

• VSWR: < 1.70, max. < 2.00

• Beamwidth: 360°/25° +/- 5°

• Polarization: Vertical

• Impedance: 50 Ohm

Bluetooth Antenna Specifications

• Frequency: 2.30 - 2.60 GHz

• Gain: 3 dBi

• VSWR: < 1.70, max. < 2.00

• Beamwidth: 360°/25° +/- 5°

• Polarization: Vertical

• Impedance: 50 Ohm

Mechanical Specifications

• Materials: ABS, Aluminum, PTFE, Fiberglass

• Connector Type: RJ45

• Ingress Protection: IP67

• Dimensions: 392 x 392 x 99 mm

• Weight: 3.7 kg

• Operating Temperature: From -40°C to 75°C.
