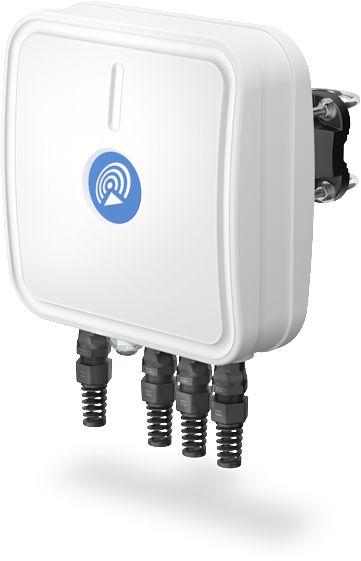

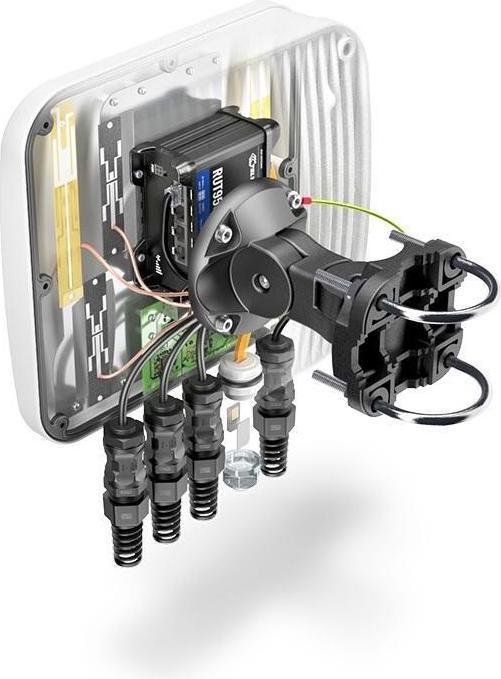

QuCam for RUT950 is a powerful outdoor industrial gateway designed for professional CCTV applications. It features an embedded PoE switch that supports up to three CCTV cameras and provides space for installing the Teltonika RUT9500 (not included). The QuCam for RUT950 also includes integrated omnidirectional LTE and Wi-Fi MIMO 2x2 antennas. This mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous environments, where a wide operating temperature range is essential. It is equipped with two external SIM holders.

LTE Antenna Specification:

• Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.5 - 2.7 GHz
• Supported LTE/5G bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256
• Gain: 0.694 - 0.96 GHz: 2 dBi; 1.7 - 2.2 GHz: 2 dBi; 2.5 - 2.7 GHz: 4 dBi
• VSWR: <1.50, max. <2.50
• Beamwidth: 360°/25° ±5°
• Polarization: Vertical
• Impedance: 50 Ω

Wi-Fi Antenna Specification:

• Frequency: 2.40 - 2.50 GHz
• Gain: 3 dBi
• VSWR: <1.70, max. <2.00
• Beamwidth: 360°/25° ±5°
• Polarization: 2x vertical
• Impedance: 50 Ω

PoE Switch Specification:

• LAN ports: 6x RJ45 10/100 Mbps
• PoE input: 1x passive PoE input 44-60 V (LAN_5)
• PoE output: 4x active PoE 802.3af/at (LAN_1-4); 1x passive PoE output 24 V/24 W (LAN_6)
• PoE output protection: LAN_1-4: 0.75 A; LAN_5: 1.25 A (separate resettable fuses)
• Passive PoE mode: Mode B (4,5+) (7,8-)
• LEDs: 1x Power on (white, on board), 6x Link (orange, on port), 6x Transmit (green, on port)
• Operating temperature: -10°C to +40°C
• Installation: 4x holes ⌀2.5 mm
• Dimensions: 73 x 145 x 17 mm (WxLxH)
• Weight: 69.5 g

Power Supply Electrical Input Specification:

• Input voltage: 110 to 240 V AC
• Input frequency: 50 - 60 Hz
• Input current: Max. 2 A RMS
• Inrush current: Max. 30 A
• AC leakage current: Max. 3.5 mA
• Efficiency: Min. 80% @ 100 V AC, 84% @ 240 V AC.
