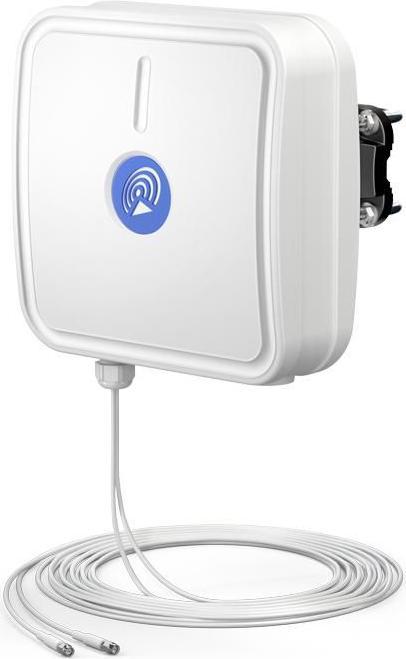

AP5G2-1 - QuPanel 5G/LTE MIMO 2x2, 10 m Cable

The QuPanel 5G/LTE directional MIMO 2x2 high gain antenna is designed primarily for 5G and 4G LTE, but it is also compatible with 3G and 2G networks. This antenna enhances signal strength in rural and suburban areas, as well as locations with weak mobile signals. It is intended for installation on buildings, either on a pole or mounted on a wall. With a very wide working frequency range, the antenna is a universal solution for 5G bands n77, n78, and various LTE bands including LTE700, LTE800, LTE1800, LTE1900, LTE2100, LTE2300, LTE2600, LTE3400, and LTE3800. It is compatible with Teltonika's RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, and other MIMO 2x2 5G/LTE/3G/2G modems and routers.

5G/LTE Antenna Specifications

• Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz; 3.3 - 3.8 GHz

• Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95

• Gain: 0.694 - 0.96 GHz: 7 dBi; 1.7 - 2.2 GHz: 7 dBi; 2.2 - 2.7 GHz: 7.5 dBi; 3.3 - 3.8 GHz: 5.5 dBi

• Front-to-back: 0.694 - 0.96 GHz: >10 dB; 1.7 - 2.2 GHz: >12 dB; 2.2 - 2.7 GHz: >14 dB; 3.3 - 3.8 GHz: >17 dB

• VSWR: <1.70, max. <2.00

• Beam width: 70°/70° +/-15°

• Polarization: Dual polarized X-pol

• Impedance: 50 ohms

Mechanical Specifications

• Materials: ABS, aluminum, PTFE, fiberglass

• Ingress protection: IP67

• Dimensions: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch)

• Weight: 1.8 kg (3.97 lbs.)

• Operating temperature: From -40°C to 75°C (from -40°F to 167°F)

• Cable length: 10 m

• Cable type: LMR195 white

• Connector type: 2x SMA plug.
