Raspberry Pi 3 Model B
More than 10 items in stock at supplier
Product details

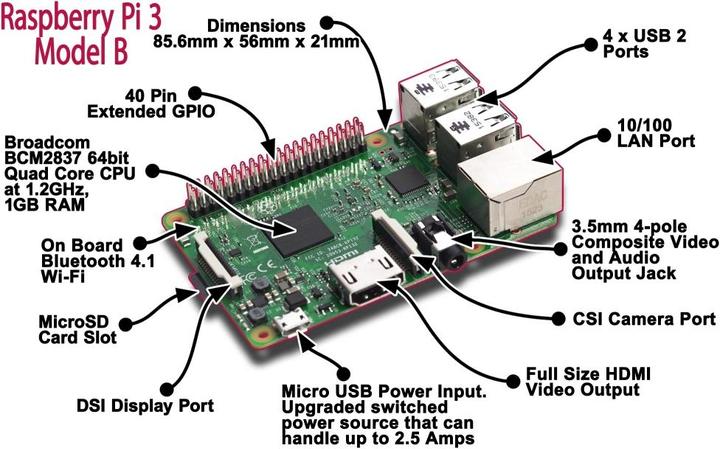

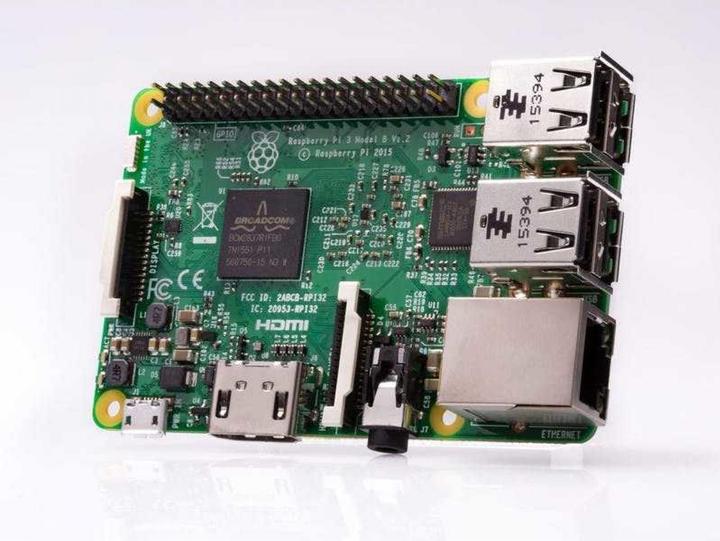

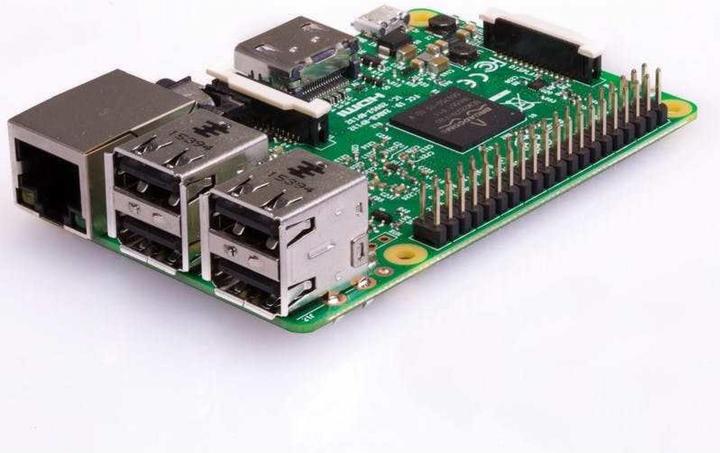

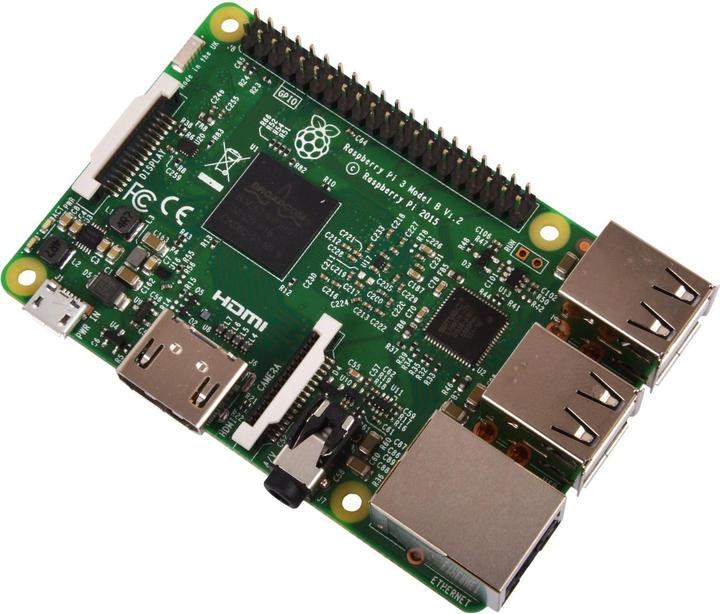

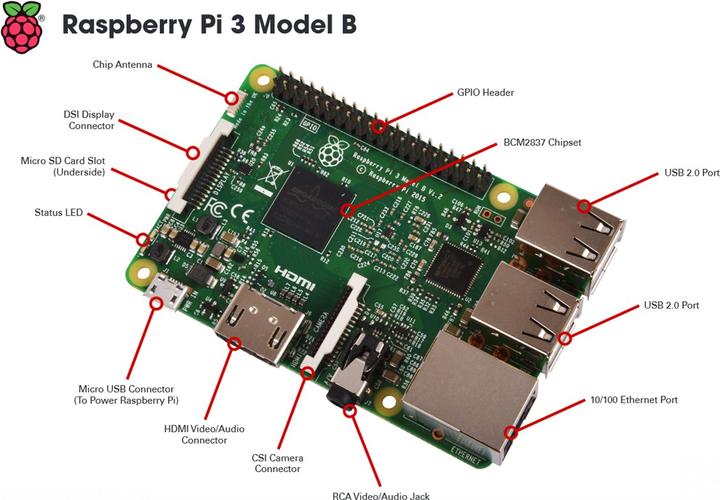

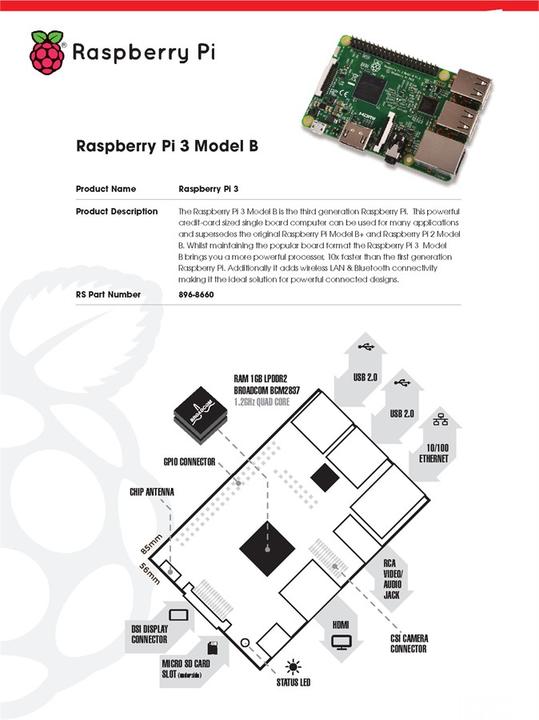

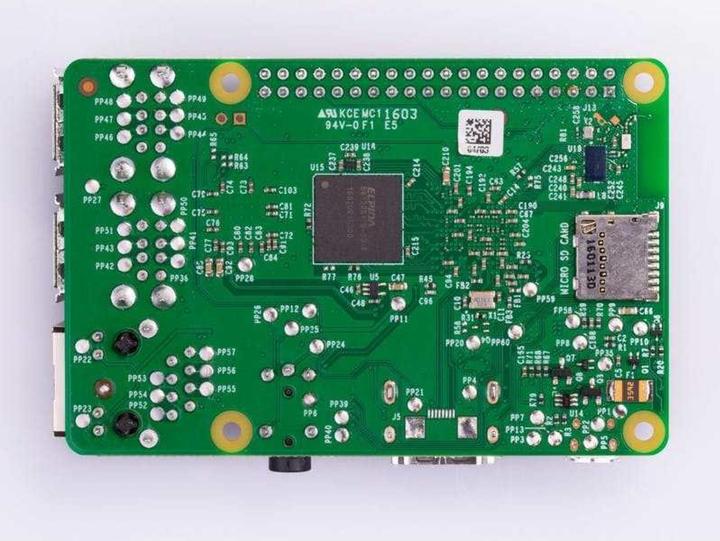

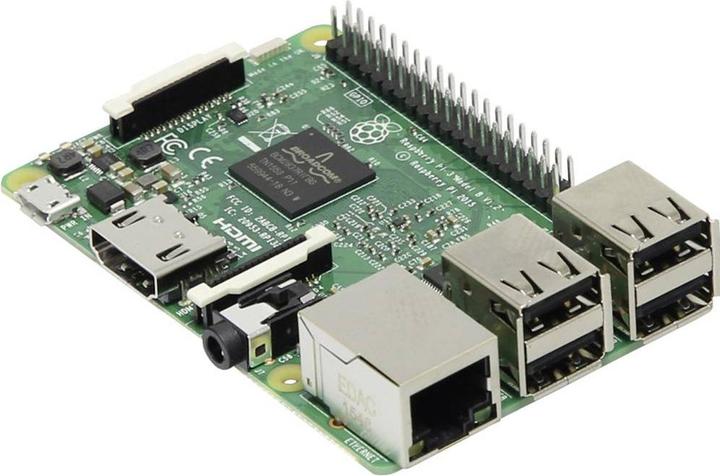

The Raspberry Pi 3 Model B is the successor to the successful mini-computer Raspberry Pi 2. Despite its extremely compact size, it represents a fully functional PC thanks to its 1.2 GHz quad-core ARMv8 processor and 1 GB of RAM. It is suitable for a variety of applications, such as serving as the basis for a web server, a media center PC, or for control tasks. The Raspberry Pi 3 Model B is also equipped with four USB 2.0 ports, a 10/100 Mbps LAN connection, as well as WLAN 802.11n and Bluetooth 4.1 with Bluetooth Low Energy. The integrated graphics feature an HDMI and an AV output and are capable of playing videos in Full HD (1080p). Sound output can also be done through either the HDMI or AV output. The Raspberry Pi 3 Model B does not have a conventional hard drive connection; instead, it features a microSD card reader, into which a memory card is inserted as the boot medium. Power is supplied via a Micro-USB port, similar to those used in modern mobile devices like smartphones or tablets. The Raspberry Pi 3 Model B is extremely energy-efficient, consuming only about 4 watts during operation.
Development board type | Board |
Memory | 1000 MB |
Processor family | Broadcom |
Processor type | Cortex-A53 |
Clock speed | 1200 MHz |
Number of cores | 4 |
Item number | 5704269 |
Manufacturer | Raspberry Pi |
Category | Development boards + Kits |
Manufacturer no. | RASPBERRYPI3-MODB-1GB |
Release date | 29.2.2016 |
External links |
Target group | Adults, Children |
Development board type | Board |
Processor family | Broadcom |
Processor type | Cortex-A53 |
Clock speed | 1200 MHz |
Memory | 1000 MB |
Number of cores | 4 |
GPU | Video Core IV |
Power supply | USB power delivery |
Operating voltage | 5 V |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
Bluetooth version | 4.1 |
USB ports | Micro USB-B |
Exact USB ports | Micro USB-B 2.0 (1x) |
Audio Connections | Jack 3.5mm (1x) |
Video connections | HDMI (1x) |
Network connections | RJ45 (1x) |
Number of I/O | 40 |
HDMI version | 1.40 |
Max. port speed | 100 Mbit/s |
Memory card type | microSD |
Additional connections | DSI, GPIO, RCA |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Additionally required (not included) | Micro USB cable, MicroSD card, Power supply |
Length | 85 mm |
Width | 56 mm |
Height | 17 mm |
Weight | 40 g |
Length | 12.30 cm |
Width | 7.80 cm |
Height | 3.50 cm |
Weight | 58 g |
