Primary nominal voltage: 230V AC
Secondary rated voltage: 24V AC
Rated power: 40VA
Mounting type: DIN rail
Length: 106mm
Width: 90mm
Depth: 95mm
Dimensions: 106 x 90 x 95mm
Operating frequency min: 50Hz
Operating frequency max: 60Hz
Maximum temperature: +130°C
Weight: 1.5kg

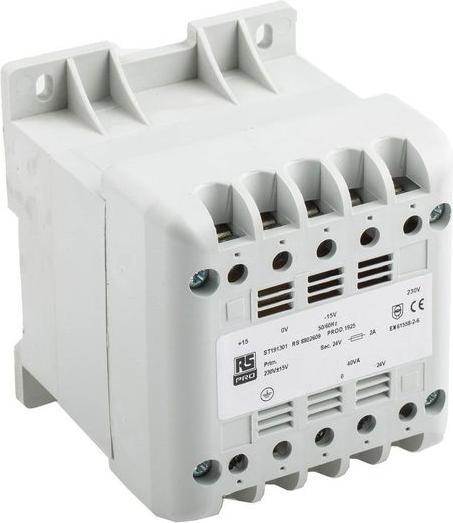

EN61558-1 switchboard primary 230/400 V AC (40/220 VA). Professional series of panel mounted transformers according to IP21 protection. The transformers are designed for use in general applications. Designed for IP21 protection. Compact open control transformer with fully sheathed screw terminals and permanent marking. Detailed product data on permanent label. Rated ratings compatible with available protection devices. Double standard primary winding 230 / 400 V AC.
