Primary rated voltage: 230V AC
Secondary rated voltage: 20V AC
Rated power: 50VA
Number of outputs: 2
Mounting type: Chassis
Length: 79mm
Width: 65mm
Depth: 62mm
Dimensions: 79 x 65 x 62mm
Diameter of mounting screw: 4.7 x 9.5mm
Weight: 1kg
Operating frequency min: 50Hz
Operating frequency max: 60Hz

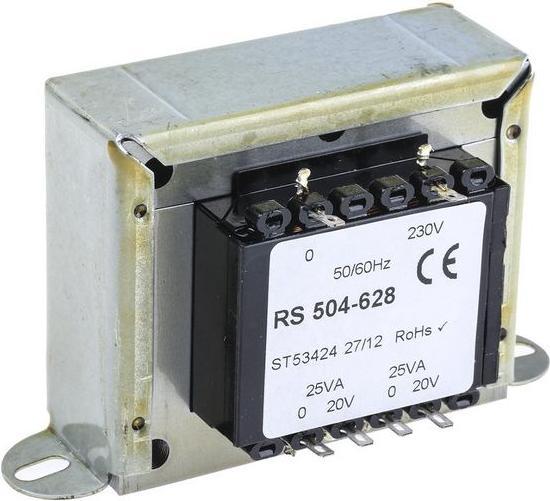

Chassis mounting, terminal type, 230V AC, 6VA to 50VA. Power transformers for chassis mounting with primary windings for 230V AC and 50/60Hz. The two independent secondary windings can be connected in series or parallel as needed, allowing for many combinations of output voltage and output current. Double chamber coil core, fully encapsulated windings, fully varnish impregnated, terminal fixation with two mounting screws, solder connections, optional connection covers. 100% electrical and dielectric testing. Testing methods according to BS3535 and EN60742.
