Primary nominal voltage: 115V AC
Secondary rated voltage: 24V AC
Rated power: 72VA
Mounting type: DIN rail
Number of outputs: 1
Length: 89.5mm
Width: 82.5mm
Depth: 82mm
Dimensions: 89.5 x 82.5 x 82mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Temperature max.: +40°C
Weight: 1.3kg

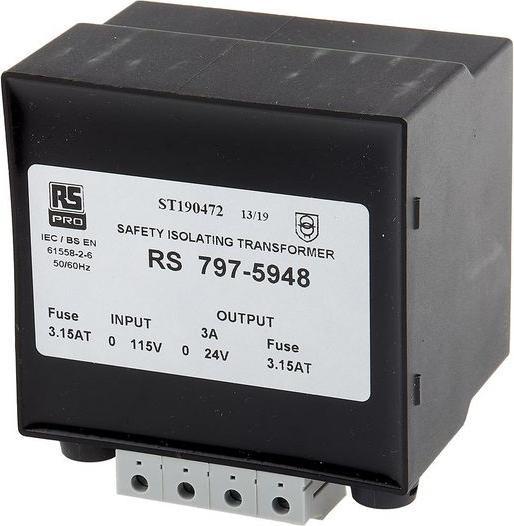

This encapsulated single-phase isolation transformer is designed for DIN rail mounting. Presented under the trusted RS brand, these high-quality safety isolation transformers are fully encapsulated in a cast resin housing and are suitable for general-purpose applications.

Features and benefits:

• 1-phase encapsulated, with screw terminals
• Mounting on 35 mm DIN rails (TS35)
• Fused input and output
• Encapsulated in resin
• Temperature class: max ta = 40 °C / insulation class B (130 °C)
• Nominal 72 VA - short term 100 VA.
