Switch type: Pushbutton
Switching sequence: Latching
Switching function: Normally open
Input voltage min.: 5V DC
Input voltage max.: 30V DC
Illuminated: Yes
LED color: Blue/White
Actuator color: Black
IP protection class: IP 68
Housing color: Black
Contact material: Brass
Rated current: 1.5 A @ 30 V DC

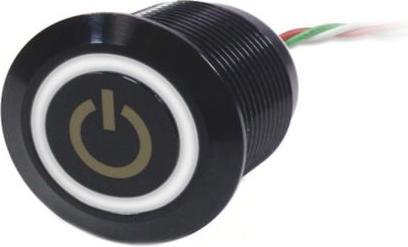

19 mm actuator switch IP68. Actuating switch from RS, available in various colors and lighting options. Automatic calibration function ensures switch adaptation to dynamic environments. Ideal for food and medical industries as the switch can be activated with a gloved hand. Impact resistance is rated IK02 for the plastic (PC) parts of the switch face and IK10 for metal surface parts. Cable length: 300 mm. Electrical life: 1,000,000 operations at full load. UV resistance: UVA / UVB.
