Primary nominal voltage: 230V AC
Secondary rated voltage: 2 x 25V AC
Rated power: 50VA
Number of outputs: 2
Secondary current: 1A
Height: 33mm
Weight: 740g
Diameter: 80mm
Dimensions: 80 (Dia.) x 33mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Connection type: Connection wire with copper conductor

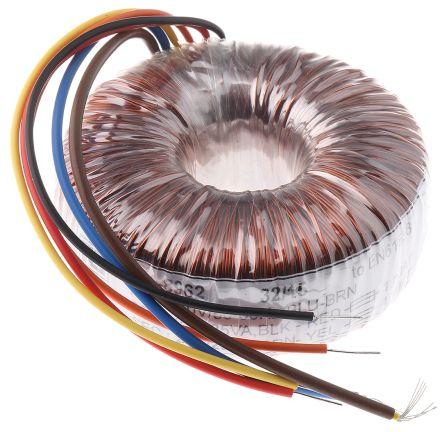

Under no circumstances must both ends of the fixing screw touch the metal housing or the metal frame at the same time, as this would lead to a dangerous short circuit. UL506, EN61558. Mounting hardware not included, available separately. Toroidal core, open type, 230V primary winding. High quality open type toroidal transformers with single 230V AC, 50/60Hz primary winding. The two independent secondary windings can be connected individually, in series, or in parallel as required. Small size and light weight compared to traditional laminated stack designs. Very low magnetic radiation. Very low induced noise (hum). Very low iron loss. Double insulated primary terminals.
