Primary rated voltage: 230V AC
Secondary rated voltage: 2 x 15V AC
Rated power: 80VA
Number of outputs: 2
Secondary current: 2.667A
Height: 38mm
Weight: 1kg
Diameter: 93mm
Dimensions: 93 (Dia.) x 38mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Connection type: Copper conductor

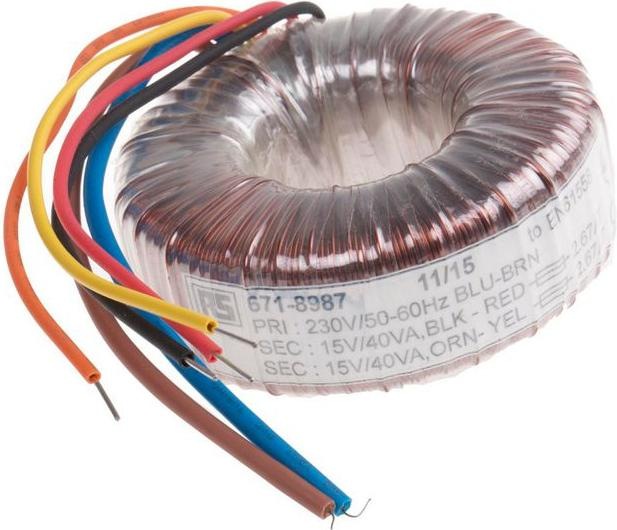

Under no circumstances should both ends of the fixing screw touch the metal housing or frame at the same time, as this would cause a dangerous short circuit. Mounting parts not included, available separately. Toroidal core, open type, 230V primary winding. High quality open type toroidal transformers with single 230V AC, 50/60Hz primary winding. The two independent secondary windings can be connected individually, in series or in parallel as required. Small size and light weight compared to traditional laminated stack designs. Very low magnetic radiation. Very low induced noise (hum). Very low iron loss. Double insulated primary terminals.
