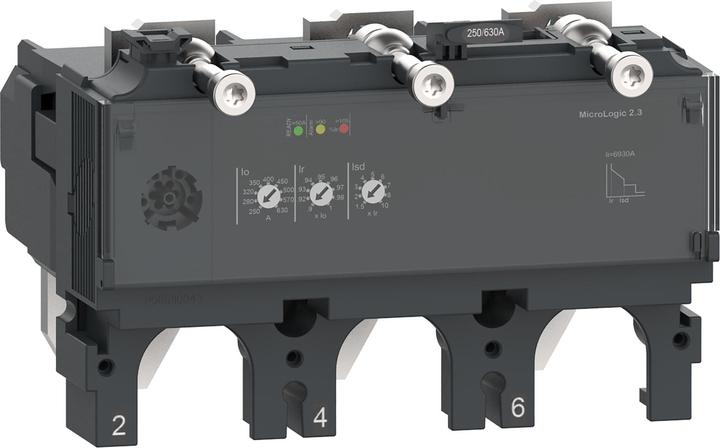

Schneider Electric Electronic Release Device C4032D400

Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 2.3
Type: C4032D400
Overload Release Current Setting: 160–400 A
Initial Value of the Undelayed Short-Circuit Release Setting Range: 4800 A
End Value of the Undelayed Short-Circuit Release Setting Range: 4800 A
Rated Continuous Current Iu: 400 A
Voltage Type for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Number of Poles: 3
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: No
Type of Motor Protection: Electronic Release

The MicroLogic 2.3 is a 3-pole electronic release device used in ComPacT NSX 400/630 circuit breakers. This electronic release device, with a rated current of 400 A, is the best choice for all standard and special applications. It features adjustable long-time overload protection, adjustable short-time protection, and fixed undelayed short-circuit protection. The MicroLogic 2.3 indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX.
EAN: 3606482003026.
