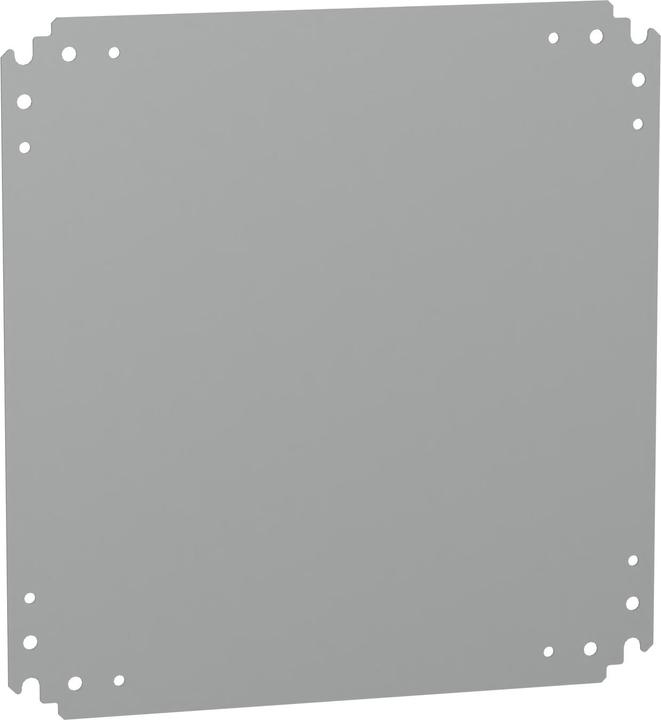

Mounting Plate
Length: 390 mm
Width: 375 mm
Height: 2 mm
Dimensions: 390 x 375 x 2 mm
Material: Steel
For use with: Thalassa PLA enclosures

The Thalassa accessories for industrial enclosures offer excellent weather resistance, double insulation, self-extinguishing properties, and impact resistance. The chassis plates are made from galvanized steel sheet with a thickness of 2.0 mm and can be directly mounted on vertical rails using toothed bayonet nuts or locking nuts. The maximum permissible load is 150 kg/m². The base is designed for use under enclosures with a closed bottom. The total height is 900 mm, with a retractable front panel of 170 mm height for easier access to the enclosure and a fixed front panel of 305 mm height for complete or partial embedding. Side supports feature an auxiliary opening in PG 36 (48 mm).
