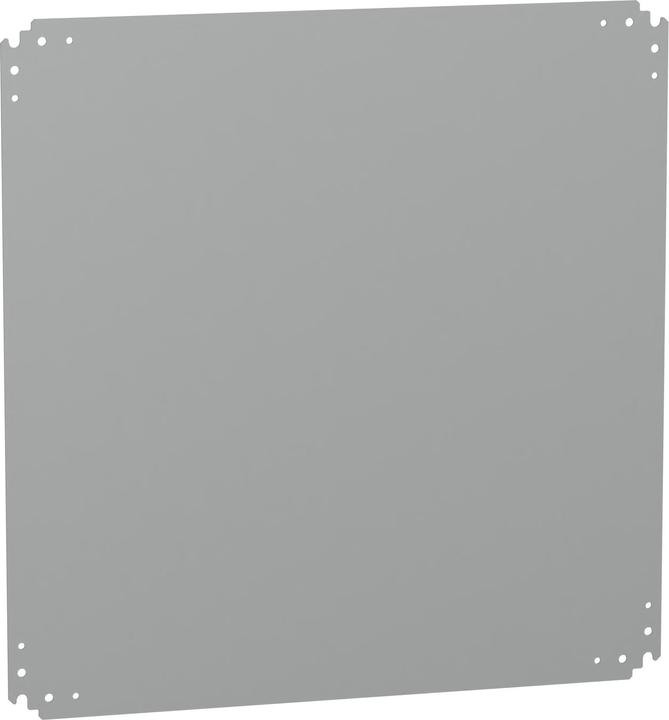

Mounting Plate
Width: 2 mm
Material: Steel
For use with: Thalassa PLA enclosures

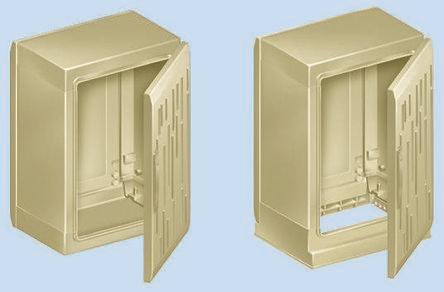

The Thalassa accessories for industrial enclosures offer excellent weather resistance, double insulation, self-extinguishing properties, and impact resistance. The chassis plates are made of galvanized steel sheet with a thickness of 2.0 mm and can be directly attached to vertical rails using toothed bayonet nuts or locking nuts. The maximum permissible load is 150 kg/m². The base is designed for use under enclosures with a closed bottom. The total height is 900 mm and features a retractable front panel with a height of 170 mm for easier access to the enclosure, as well as a fixed front panel with a height of 305 mm for complete or partial embedding. Side supports include a helper opening in PG 36 (48 mm).
