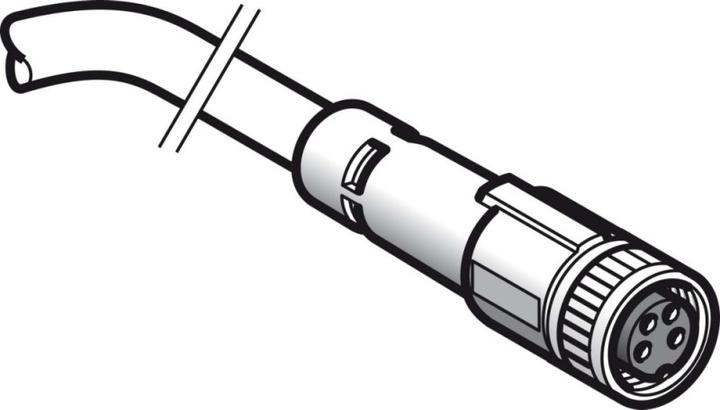

The Yageo XZ pre-wired socket, straight, M8, 4-pole, PUR 2m cable XZCP0941L2 is an OsiSense connection cable with a PUR cable (2 meters). It is equipped with a straight 4-pole M8 socket and made of polyurethane (PUR). The cable entries are arranged on both sides, with an M8 female (socket) on the field side and another female (socket) on the housing side. The cable sheath is black and contains 4-pole contact sockets. The contact base body is made from a different material than the contact coating. The rated current is 4 A and the rated voltage is 60 V. The contact resistance is 5 Ohms and the protection class is other. The XZCP0941L2 is permissible at an external cable temperature after installation without shock of -40 °C and during installation/handling of -5 °C.

Features:

• Number of poles: 4
• Type of electrical connection, field side: M8
• Type of plug contact, field side: Female (socket)
• Arrangement of cable entry, field side: straight
• Type of electrical connection, housing side: other
• Type of plug contact, housing side: Female (socket)
• Arrangement of cable entry, housing side: other
• Cable length: 2 m
• Material of cable sheath: Polyurethane (PUR)
• Halogen-free: no
• Color of cable sheath: black
• With LED indicator: no
• Shielded: no
• Type of conductor: multi-core
• Radiation cross-linked: no
• Material of contact base body: other
• Material of contact coating: other
• Permissible external cable temperature after installation without shock: -40 °C
• Permissible external cable temperature during installation/handling: -5 °C
• Rated current: 4 A
• Rated voltage: 60 V
• Contact resistance: 5 Ohms
• Protection class (IP): other.
