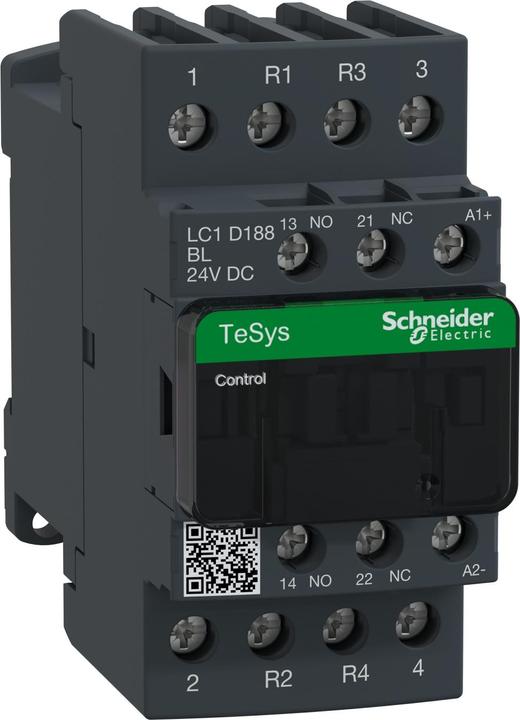

Schneider Electric Contactor 18 A 2P/2R AC3 24 VBC LC1D188BL

Ratings
Currently out of stock
Free shipping starting at 30,–

Product details

Area: TeSys D
Series: LC1D
Number of Poles: 4
Coil Voltage: 24 Vdc
Rated Contact Current: 32 A
Rated Contact Voltage: 690 Vac
Contact Configuration: 2 Normally Open / 2 Normally Closed
Number of Auxiliary Contacts: 2
Connection Type: Screw Terminal
Length: 91 mm
Width: 45 mm
Maximum Operating Temperature: +60 °C

4-pole contactors, DC-controlled. Utilization category AC1. Auxiliary contact configuration: one Normally Open, one Normally Closed. The width of the LC1D contactors is 45 mm. The closing time of the LC1D series is 12–22 ms, and the opening time is 4–19 ms. These contactors should not be used with TeSys overload relays, connection units, or GV2 overload switches.

Key specifications

Relay type
Power contactor
input voltage
24 V
Electric current output
32 A
Output current type
AC
Number of poles
4x

General information

Item number
9727500
Manufacturer
Schneider Electric
Category
Relays
Manufacturer No.
LC1D188BL
Release date
24.9.2018

Relay properties

Relay type
Power contactor
input voltage
24 V
Electric current output
32 A
Output current type
AC
Switching function
Normally open, Opener
Number of openers
2x
Number of closers
2x
Number of poles
4x
Max. Switching capacity
7.50 kW

Origin

Country of origin
Indonesia

Sustainability

Manufacturer commitment
RE100, SBTi

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
107 mm
Width
45 mm
Height
91 mm
Weight
585 g
