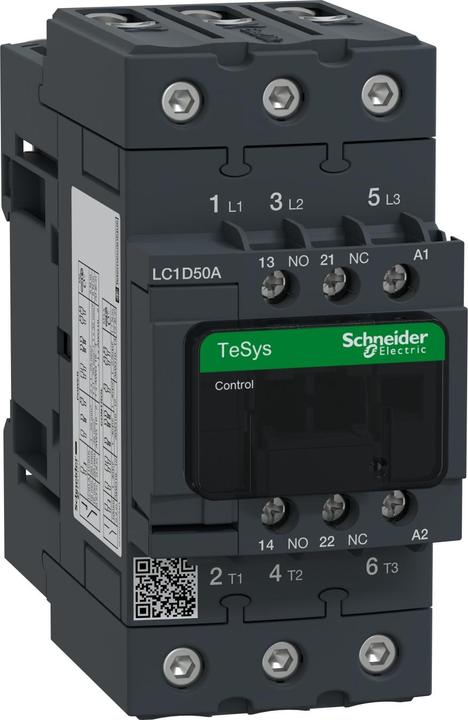

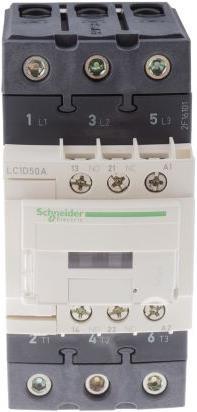

Range: TeSys D
Series: LC1D
Number of poles: 3
Coil voltage: 115 V AC
Nominal contact current: 80 A
Nominal contact voltage: 690 V AC
Contact configuration: 3 NO contacts
Number of auxiliary contacts: 2
Power: 22 kW
Connection type: Everlink
Length: 122 mm
Width: 55 mm
Operating temperature min: -5°C

Everlink tri-polar switch. TeSys switch with two Everlink power connectors with hex screw. Allows a single unit assembly with an Everlink circuit breaker (vertical or side installation). For control of motors between 22 and 30 kW from AC3 category at 440 V AC. To control 60 to 80 A outputs for lighting and distribution.
