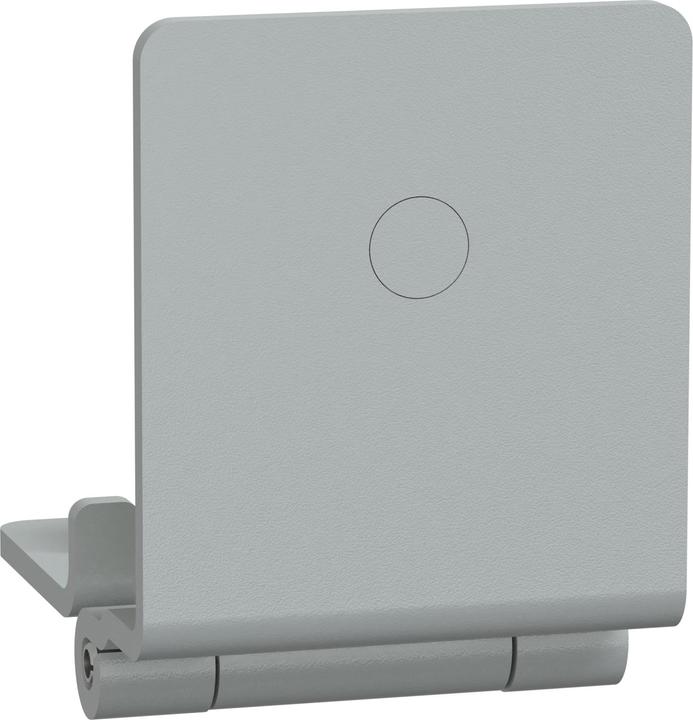

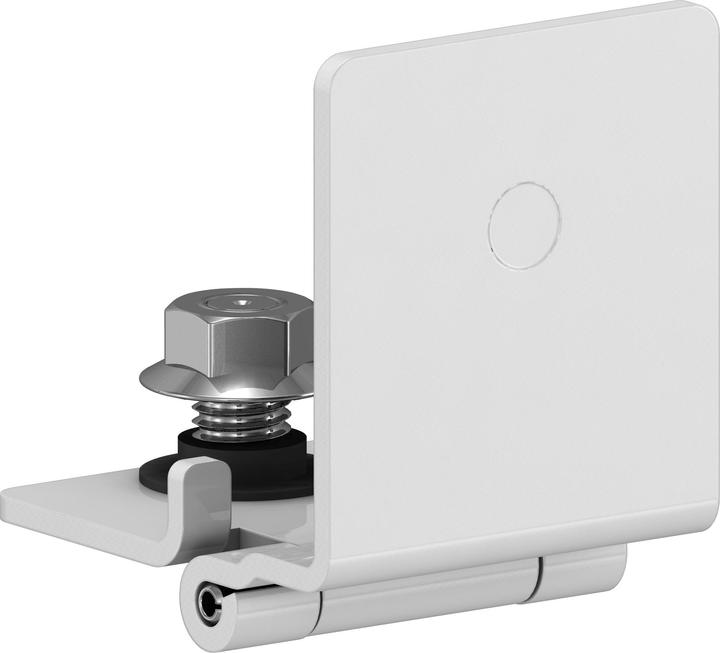

Type: Hinge Set
Material: Steel
For use with: Spacious SBM Enclosure
Quantity: 6

Three profiles for a width of 800 mm, two for bus enclosures (three screws for a width greater than 400 mm), four for flat and access enclosures (six screws for a width greater than 400 mm). The Spacial SBM steel enclosures from Schneider Electric are available in three versions and are designed for use in industrial machine and building applications. The wall-mounted enclosures feature a one-piece rectangular body with folded gutters at the front and two (or three) drilled profiles for installing mounting plates and DIN rails at the back. The mounting holes have a diameter of 12.5 mm. The enclosure cover has a polyurethane seal and two, three, four, or six threaded screws with a half turn (depending on the version). An M6 x 16 grounding connection bolt is welded into the cover to provide a potential connection terminal for the enclosure.

Features and Benefits:

• 28 different sizes available, with the use of accessories from the expansion box even up to 42 sizes
• Depths of 80 mm and 120 mm available, with or without pre-installed FL21 cable entries
• Protection class IP66, meaning the enclosures are dust-tight and provide protection against strong water jets and heavy seas
• External mechanical impact resistance of up to IK10 (20 Joules) – this means the wall box can withstand a 5 kg object dropped from a height of 40 cm
• Can be installed with a screwdriver
• Direct mounting from the back or using external mounting lugs
• Protected inside and out by gray (RAL 7035) painted polyester
• Attractive and robust design to protect sensitive electronics

Typical Applications:
The Spacial SDB series from Schneider is suitable for use in underground garages, road, and railway tunnels.
