Height outside: 116 mm
Width outside: 116 mm
Outer depth: 62 mm
External dimensions: 116 x 116 x 62 mm
Housing material: Polycarbonate
Transparent door: No
IP protection class: IP66
Chassis plate: No
Screen connection plate: No
Color: Gray
Series: Thalassa TBP
Mounting kit: No
Internal mounting type: Mounting projections

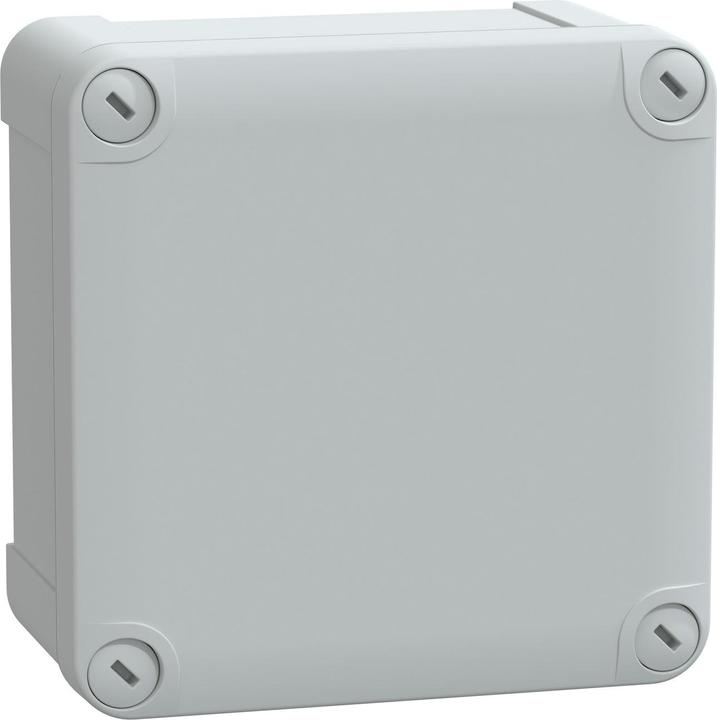

The Thalassa industrial enclosures made of PC plastic offer an IP66 protection class, meaning they are dust-tight and provide protection against strong water jets and heavy seas. The Thalassa TBP series from Schneider Electric is versatile and features Class II electrical insulation. The rounded design adds extra robustness to the enclosures.

Features and benefits:

• External mechanical impact resistance of IK08 (5 Joules), meaning the wall box can withstand an object weighing 1.7 kg dropped from a height of 29.5 cm.
• Operating temperature range from -25 °C to +80 °C.
• Halogen-free and self-extinguishing for added fire safety.
• Various plugs in the enclosure for attaching accessories.
• Multiple wall mounting options: directly through the holes in the enclosure base, via channels outside the encapsulated area, or through clamp mounting.

Typical applications:
The Thalassa TBP enclosure series is suitable for protecting small components that require minimal intervention and maintenance.
