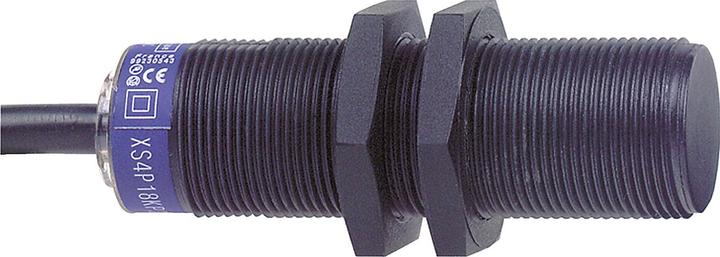

STHU Inductive Sensor XS4P18PB370L2
Manufacturer: STHU
Description: Inductive sensor 12-48VDC-10m cable
Type: XS4P18PB370L2
Length of the sensor: 60 mm
Diameter of the sensor: 18 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 8 mm
Suitable for safety functions: no
Type of switching function: Normally open
Type of switching output: PNP/PNP
Type of electrical connection: Radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: Metallic target
Interface design: None
Interface design for safety-related communication: None
Housing design: Cylinder, threaded
Housing coating: Other
Cascadable: No
SIL according to IEC 61508: None
Performance level according to EN ISO 13849-1: None
Max. output current at safe output: 200 mA
Supply voltage: 12..48 V
Rated control supply voltage Us for DC: 12..48 V
Type of voltage: AC/DC
Switching frequency: 2000 Hz
With monitoring function for downstream devices: No
Material of the housing: Plastic
Pressure-resistant: No
Explosion protection category for gas: None
Explosion protection category for dust: None
Interference immunity against magnetic fields: Resistant to magnetic static fields
STHU Inductive Sensor XS4P18PB370L2: further details on inductive proximity switch M18 PPS. 10 meter cable.
