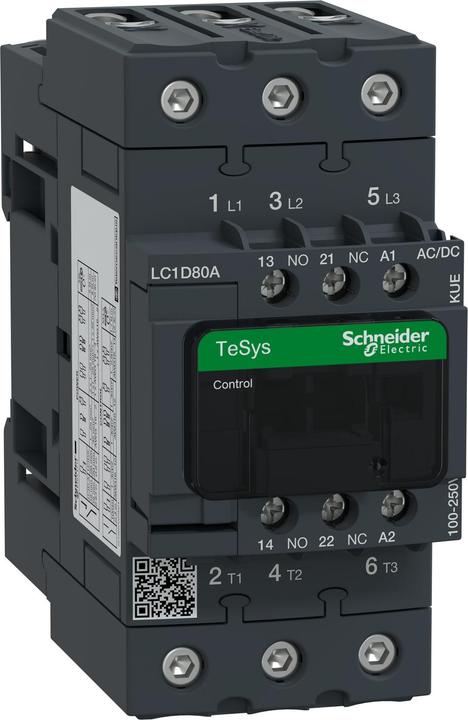

Schneider Electric contactor LC1D 3p LC1D80AKUE

Manufacturer: Schneider Electric
Designation: Contactor LC1D 3p 1S+1Ö, 37 kW, 80 A, 400 V
Type: LC1D80AKUE
Rated control supply voltage Us at AC 50 Hz: 100-250 V
Rated control supply voltage Us at AC 60 Hz: 100-250 V
Rated control supply voltage Us at DC: 100-250 V
Type of voltage for actuation: AC/DC
Rated operational current Ie with AC-1, 400 V: 80 A
Rated operational current Ie with AC-3, 400 V: 66 A
Rated operational power with AC-3, 400 V: 37 kW
Rated operational current Ie with AC-4, 400 V: 25 A
Rated operational power with AC-4, 400 V: 11 kW
Suitable for series installation: No
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: Screw connection
Number of make contacts as main contacts: 3

Power contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V 37 kW, rated operational current Ie at AC-3, 400 V 80 A, coil 100-250 V AC/DC. Dimensions (WxHxD): 55 x 122 x 120 mm, weight: 1.002 kg. EverLink terminals hexagon socket. In accordance with local electrical wiring regulations, an insulated size 4 Allen key must be used. Category AC-1, AC-3. Coil: AC/DC, electronic, integrated bidirectional peak limiting. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts. Connection control section screw terminals.
