Area: TeSys K
Series: CA2K
Number of poles: 4
Coil voltage: 120 V AC
Rated contact current: 110 A
Rated contact voltage: 690 V
Contact configuration: 4 normally open
Number of auxiliary contacts: 0
Power: 4.5 VA
Connection type: Screw mounting
Length: 58 mm
Width: 45 mm
Maximum operating temperature: +50 °C

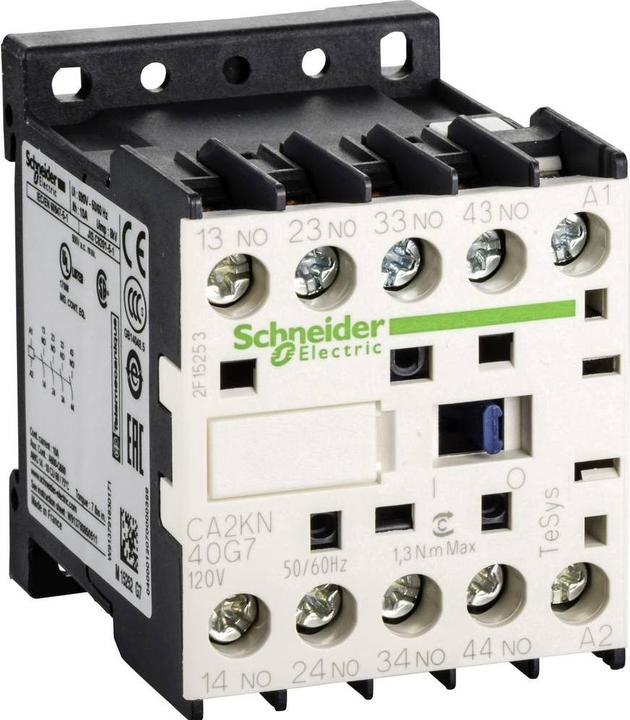

The CA2K and CA3K K-relays are typically mounted on 35 mm DIN rail but can also be mounted directly onto a panel. A version of this relay can be mounted on printed circuit boards. There is a low power consumption version of this relay available for use with DC low signals from a computer or PLC. The fixed contacts of these relays have ratings according to NEMA A600 and Q600 and can form an 8-pole relay. The serrated silver-nickel contacts with wiping action ensure excellent reliability in 12 or 24 volt control circuits. A mounting option for an electronic timer is available for these relays. NEMA A600, Q600 screw terminal connections are suitable for various applications such as material handling, heating, ventilation, and air conditioning, packaging, oil and gas, cranes, and hoists.
