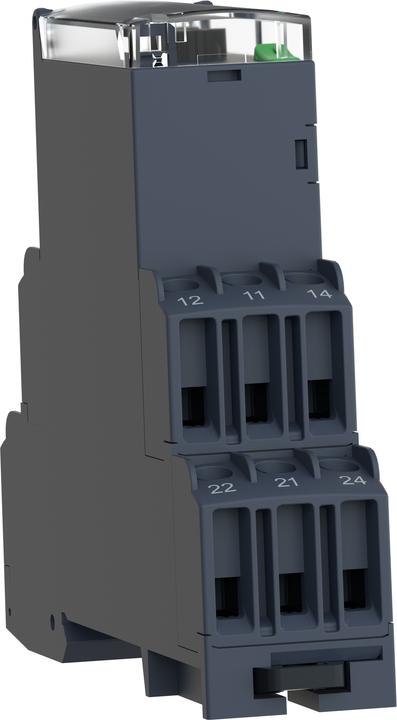

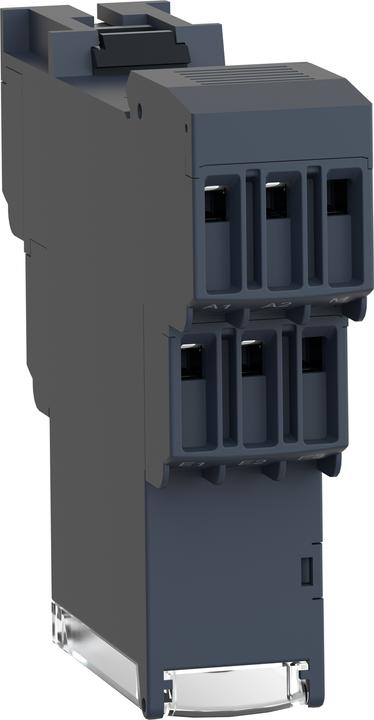

Schneider Electric Monitoring for overcurrent, 4-1,000 mA, RM22JA21MR
Product details

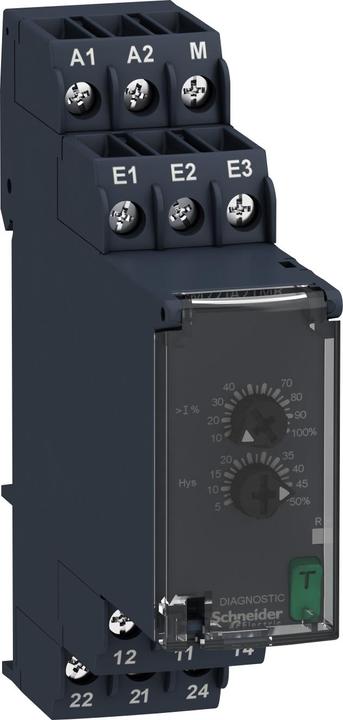

Harmony Control. This current monitoring relay supervises a conductor for exceeding the set threshold (4-1000 mA). It features two relay contacts that can handle loads of up to 8 A. The threshold and switching hysteresis are adjustable. Settings are made via control elements on the front, which can be protected against tampering with a clear cover. A lit scale pointer allows for easy visibility of the potentiometer settings even from a distance. The front diagnostic switch enables the output relays to be turned off for testing the overall application. Closing the clear cover automatically resets the diagnostic switch. The wide voltage power supply (24-240 VAC/DC) allows for universal use. Three LEDs indicate the status. The device width is 22.5 mm, and it is mounted on a DIN rail. The wiring connection is made via screw terminals.
Relay type | Monitoring relay |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 8 A |
Output current type | AC |
Item number | 33624425 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer no. | RM22JA21MR |
Release date | 17.5.2023 |
Relay type | Monitoring relay |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 8 A |
Output current type | AC |
Switching function | Changer |
Number of openers | 2x |
Number of closers | 2x |
Smart home | Not compatible |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Scope of delivery | Current monitor RM22JA21MR |
Length | 73 mm |
Width | 22.50 mm |
Height | 90 mm |
