Schneider Electric NSYTBS342T Housing IK07
HousingOnly 3 pieces in stock at third-party supplier
Product details

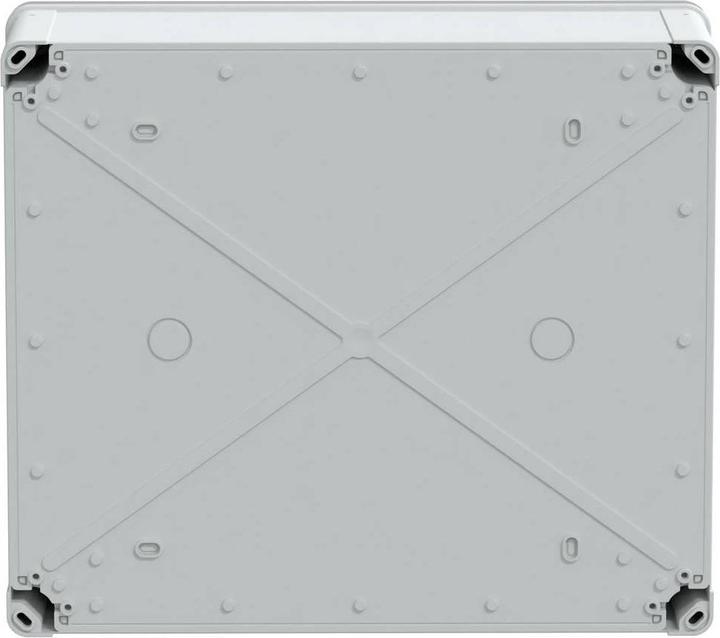

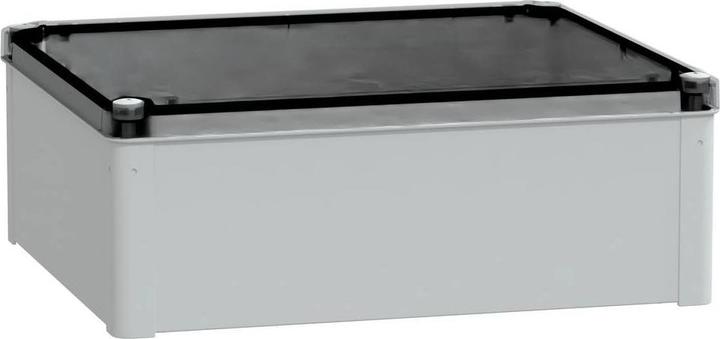

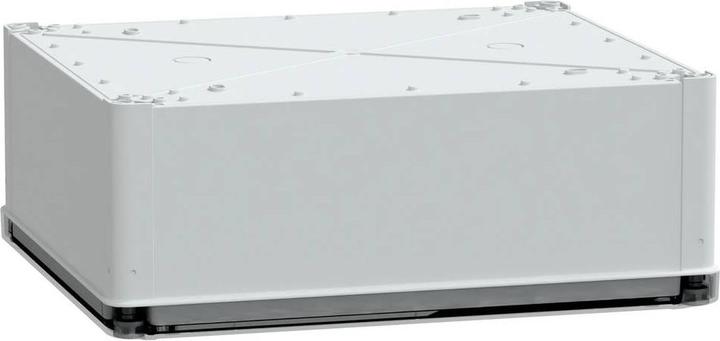

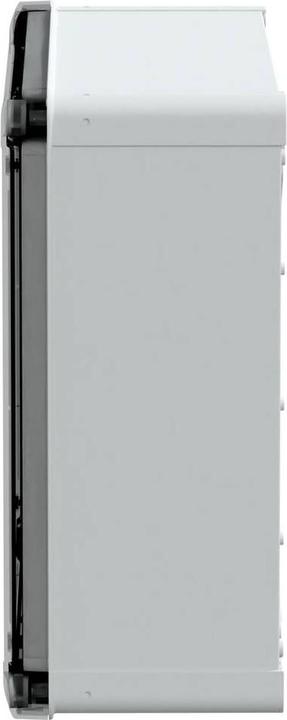

This wall-mounted TBS enclosure made of ABS is suitable for multipurpose applications. The enclosure has a height of 341 mm, a width of 291 mm, and a depth of 128 mm. The internal dimensions are 325 mm x 275 mm x 120 mm. It is made from ABS (Acrylonitrile-Butadiene-Styrene), which is impact-resistant, corrosion-resistant, and resistant to low and high temperatures. It consists of 45% post-industrial recycled plastic (ABS). It is available in gray (RAL 7035) with a transparent cover. The cover is secured with non-removable flat screws that are located outside the sealed area and can be easily opened with a flat screwdriver. The enclosure can be used for junctions, terminations, the protection of electronic circuits, the support of push buttons, industrial automation, and other applications. It has electrical insulation class II, which prevents electric shocks and allows for the construction of fully insulated solutions. Additionally, it is fire-resistant up to 650 °C according to the IEC 60695-2-11 standard. The enclosure offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact-resistant with an IK07 rating (IEC 62262). It can be used in an ambient temperature range of -25 to 60 °C without compromising its performance. The enclosure is TÜV certified and has electrical insulation class II, which prevents electric shocks.
Electrical engineering accessory type | Housing |
Item number | 13128640 |
Manufacturer | Schneider Electric |
Category | Electronics supplies + Casing |
Manufacturer No. | NSYTBS342912T |
Release date | 27.4.2020 |
Colour | Grey |
Compatible hardware | Various |
Electrical engineering accessory type | Housing |
Country of origin | Hungary |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 29,97 kg |
Climate contribution | EUR 0,75 |
Items per sales unit | 1x |
Scope of delivery | Top |
Length | 128 mm |
Width | 291 mm |
Height | 341 mm |
Weight | 1448 g |
Product Safety |
