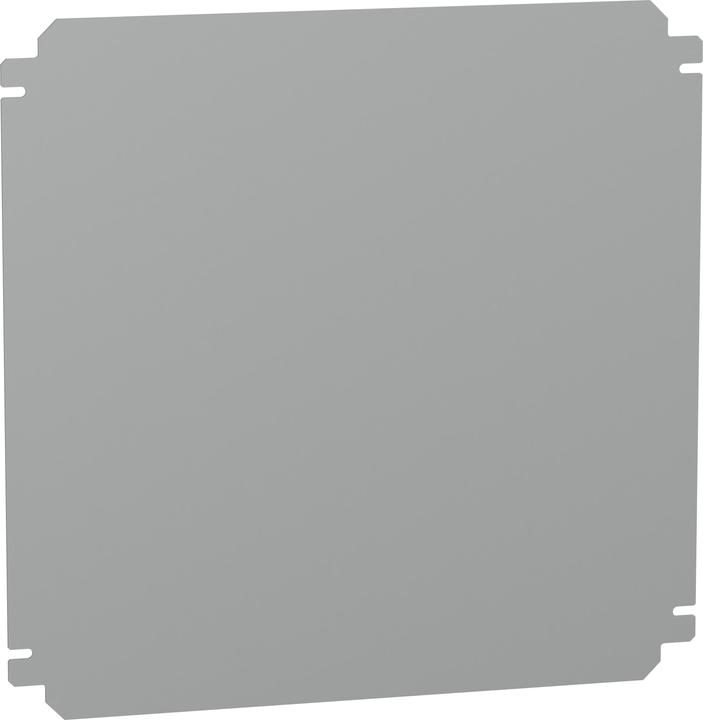

Mounting Plate
Material: Galvanized Steel
Dimensions: 385 x 385 mm
Width: 385 mm
Height: 385 mm
For use with: Spacious SBM Box
Quantity: 1

The Spacial SBM industrial boxes from Schneider Electric are available in three versions and designed for use in industrial machinery and construction applications. The wall-mounted enclosures feature a one-piece rectangular body with stitched channels on the front and 2 or 3 drilled profiles for installing mounting plates and DIN rails on the back. The mounting holes have a diameter of 12.5 mm. The enclosure cover includes a polyurethane gasket as well as 2, 3, 4, or 6 non-threaded half screws, depending on the version. An M6 x 16 grounding connection bolt is welded into the cover to provide a potential connection for the enclosure.

Features and benefits include:

• 28 different sizes available, with accessories from the expansion enclosure offering up to 42 sizes
• Depths of 80 mm and 120 mm available, with or without pre-installed FL21 cable entries
• IP66 protection, ensuring that the enclosures are dust-tight and resistant to strong water jets and rough seas
• External mechanical impact resistance of up to IK10 (20 Joules), meaning the wall box can withstand a 5 kg object dropped from a height of 40 cm
• Can be installed with a screwdriver
• Direct mounting from the back or with external mounting brackets
• Protected inside and out by gray (RAL 7035) painted polyester
• Attractive and robust design to protect sensitive electronics

Typical applications for Schneider's Spacial SDB series include underground garages, road, and railway tunnels.
