Manufacturer Series: M340
Number of Inputs: 16
Input Type: Discrete
Compatible with: M340 Series
Number of I/O: 16
Voltage Category: 24 Vdc

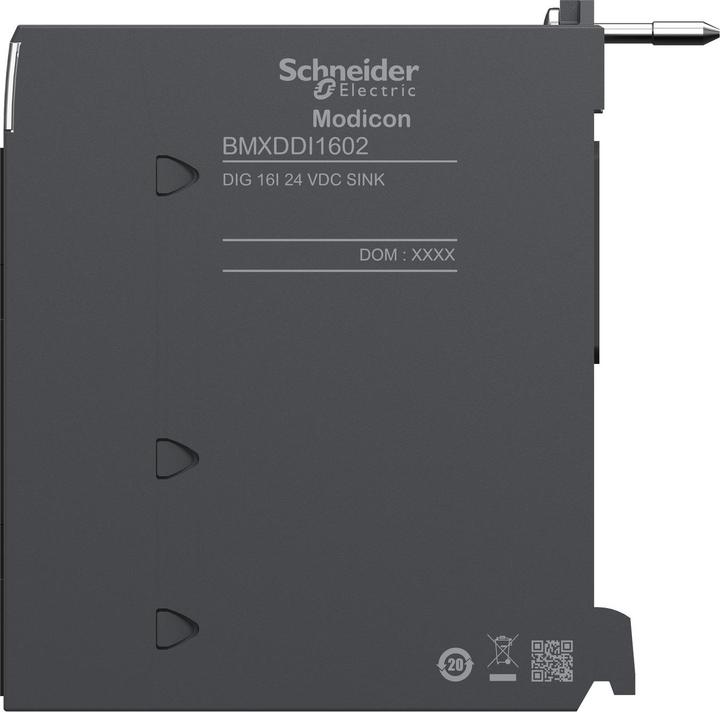

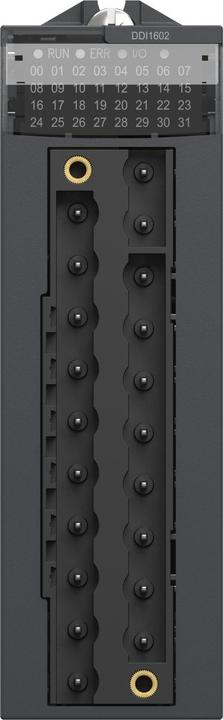

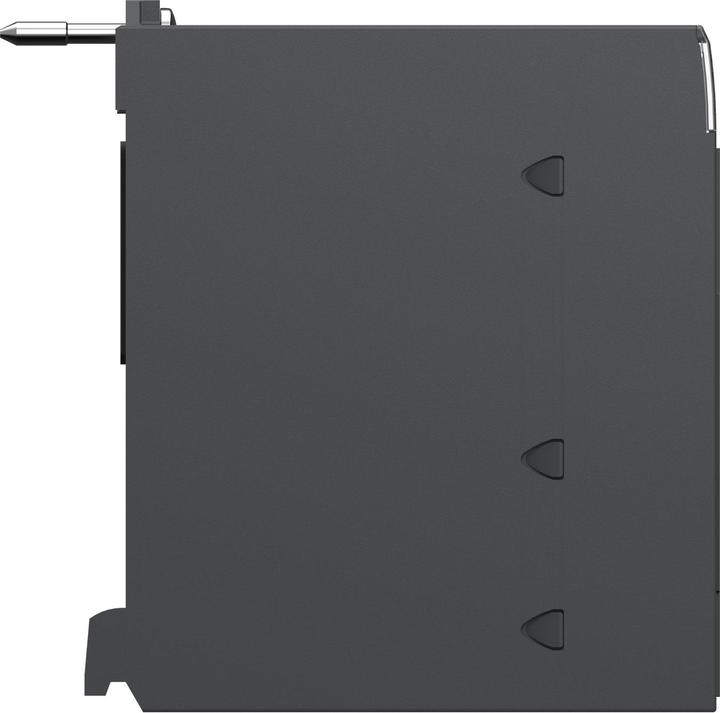

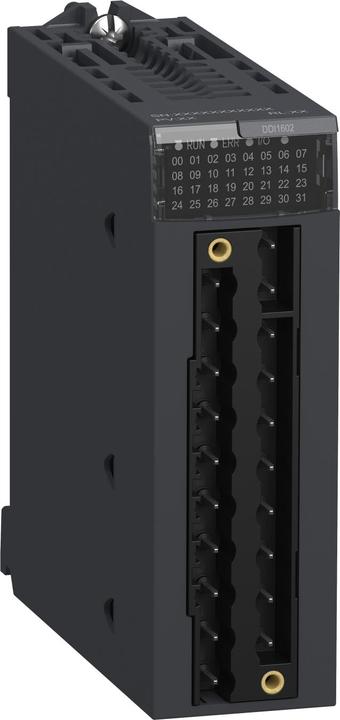

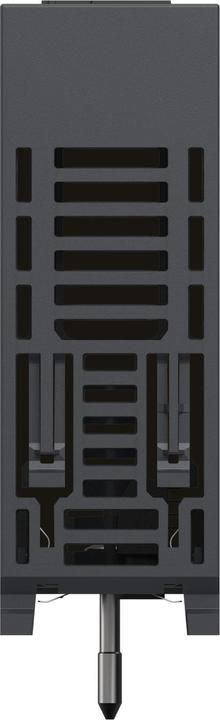

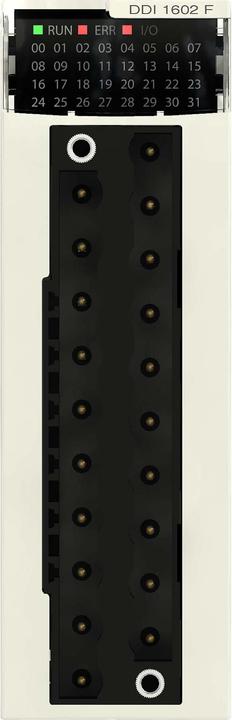

The modules with 16 inputs require a 20-pin removable terminal block or a pre-assembled cable set with a 20-pin removable terminal block on one end and connection wires on the other end. The modules with 32 and 64 inputs require one or two pre-assembled cable sets with a 40-pin connector. Using a push button on the 64-channel module, channels 0 to 31 and 32 to 63 can be displayed on the block by pressing repeatedly. Modicon M340 digital input. Discrete BMX I/O modules form the standard format (1 slot). Their housing ensures an IP 20 protection rating for the electronics and is secured with a captive screw.
