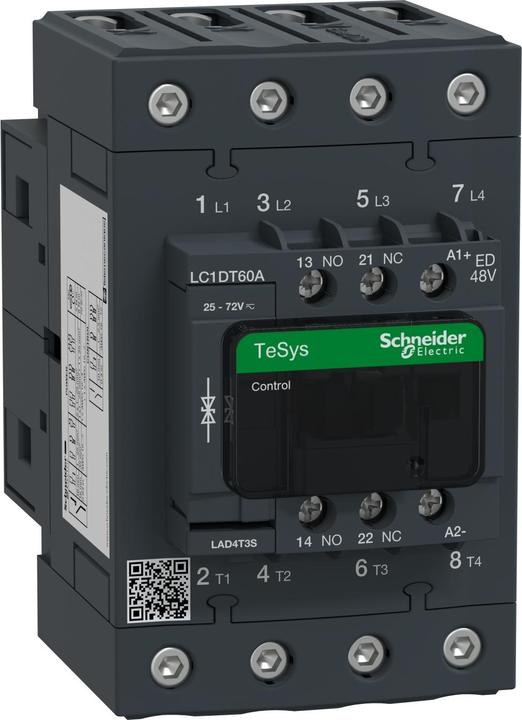

The LC1DT60AED power contactor from Schneider Electric is a highly advanced 4-pole TeSys D contactor designed for AC-1 load applications up to 60 A at 690 V. Featuring a 48 V DC coil, this device provides reliable control and is equipped with integrated auxiliary contacts (1S+1Ö) that allow for additional functionality. The power connection is made via EverLink screw terminals, while the control is also implemented through screw terminals. With a compact width of 70 mm, the contactor is suitable for DIN rail mounting and can achieve high operating speeds of up to 3600 cycles per hour. This ensures high reliability and longevity in operation. The power contactor meets several international standards, including IEC, UL, CSA, CCC, EAC, and Marine, and is also Green Premium compliant, making it an environmentally friendly choice.

• 4-pole design for versatile applications
• Integrated auxiliary contacts (1S+1Ö) for additional functionality
• High operating speed of up to 3600 cycles per hour
• Compatible with DIN rail mounting for easy installation
• Meets multiple international standards and Green Premium compliance.
