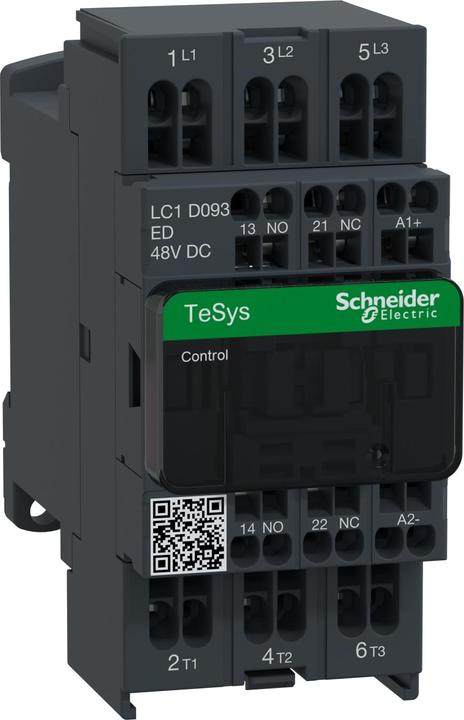

Schneider Electric power contactor LC1D093ED. Manufacturer: Schneider Electric. Designation: Power contactor, 3-pole, 1S, 1Ö. Type: LC1D093ED. Rated control supply voltage Us at DC: 48 V. Voltage type for actuation: DC. Rated operational current Ie at AC-1, 400 V: 20 A. Rated operational current Ie at AC-3, 400 V: 9 A. Rated operational power at AC-3, 400 V: 4 kW. Rated operational current Ie at AC-4, 400 V: 6 A. Rated operational power at AC-4, 400 V: 2.2 kW. Suitable for series mounting: No. Number of auxiliary contacts as make contacts: 1. Number of auxiliary contacts as break contacts: 1. Connection type main circuit: Spring-cage connection. Number of make contacts as main contacts: 3.

Further details: Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC. Rated operational power at AC-3, 400 V: 4 kW. Rated operational current Ie at AC-3, 400 V: 9 A. Coil: 48 V DC. Dimensions (WxHxD): 45 x 80 x 95 mm. Weight: 0.48 kg. Category: AC-3, AC-1, AC-4. Integrated bidirectional amplitude limiting diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts. Certifications: CSA, CCC, UL, BV, RINA, GOST, DNV, GL, LROS (Lloyds register of shipping). Product standards according to EAN: 3389110805796.
