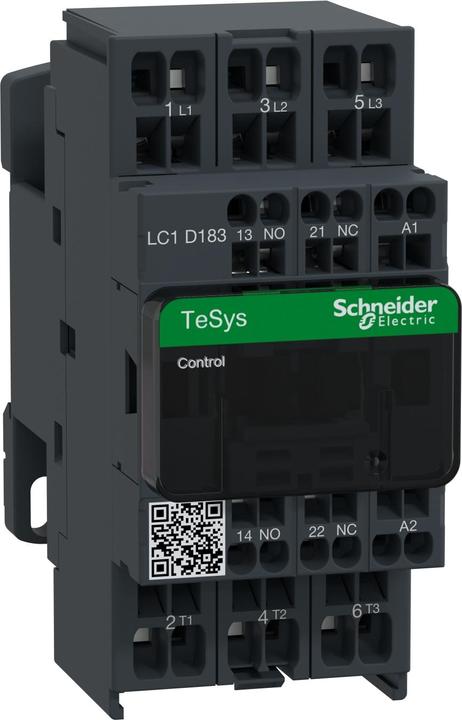

Schneider Electric power contactor LC1D183G7

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D183G7
Rated control supply voltage Us at AC 50 Hz: 120 V
Rated control supply voltage Us at AC 60 Hz: 120 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 32 A
Rated operational current Ie at AC-3, 400 V: 18 A
Rated operational power at AC-3, 400 V: 7.5 kW
Rated operational current Ie at AC-4, 400 V: 9 A
Rated operational power at AC-4, 400 V: 4 kW
Suitable for series installation: No
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: Spring-cage connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D, 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 7.5 kW, rated operational current Ie at AC-3, 400 V: 18 A, coil: 120 V AC.
Dimensions (WxHxD): 45 x 99 x 86 mm, weight: 0.33 kg.
Category: AC-4, AC-1, AC-3.
Without integrated wiring module. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications: BV, RINA, CSA, CCC, GL, UL, DNV, GOST, LROS (Lloyds register of shipping).
Product standards according to EAN: 3389110803723.
