Schneider Electric Power contactor LP1K09004BD3
Product details

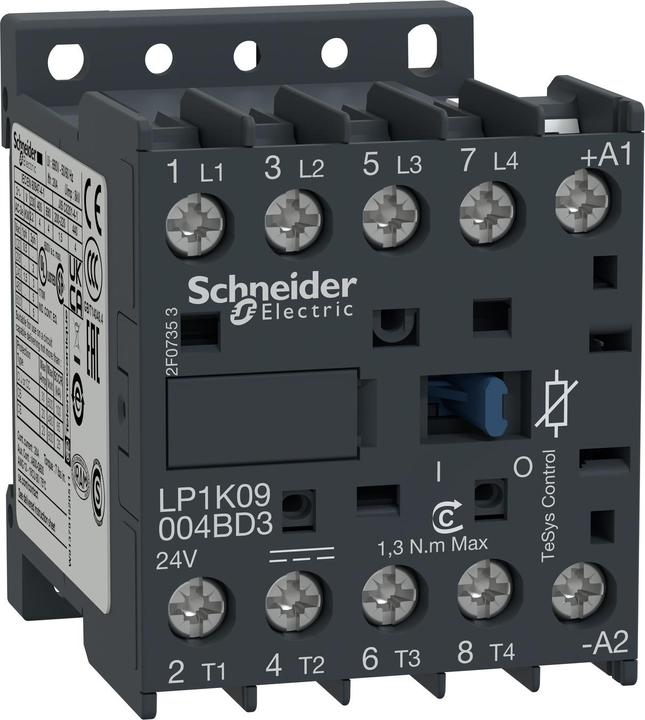

Schneider Electric power contactor LP1K09004BD3
Manufacturer: Schneider Electric
Designation: Power contactor 9A, 24V, GS with diode
Type: LP1K09004BD3
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 20 A
Rated operational current Ie at AC-3, 400 V: 9 A
Rated operational power at AC-3, 400 V: 4 kW
Suitable for series installation: No
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 4
Further details:
Contactor TeSys LP1K. 4 pole, 4 NO contacts. Coil 24 V DC. Dimensions (WxHxD): 45x58x57 mm, weight: 0.225 kg. Category AC-1. Integrated bidirectional amplitude limiter diode. Simple machine control in industrial, infrastructure, and building applications. Easy-to-use interface for electronic devices (PLC). Certifications according to CSA, UL. Product standards according to EAN: 3389110495232.
Relay type | Power contactor, Switching relay |
input voltage | 24 V |
Output voltage | 440 V |
Electric current output | 20 A |
Output current type | AC |
Number of poles | 4x |
Item number | 30353211 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer No. | LP1K09004BD3 |
Release date | 28.4.2023 |
Relay type | Power contactor, Switching relay |
input voltage | 24 V |
Output voltage | 440 V |
Electric current output | 20 A |
Output current type | AC |
Switching function | Normally open |
Number of openers | 0x |
Number of closers | 4x |
Number of poles | 4x |
Max. Switching capacity | 4 kW |
Smart home | Not compatible |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
Scope of delivery | 1 pc. |
Length | 66 mm |
Width | 45 mm |
Height | 58 mm |
Weight | 225 g |
