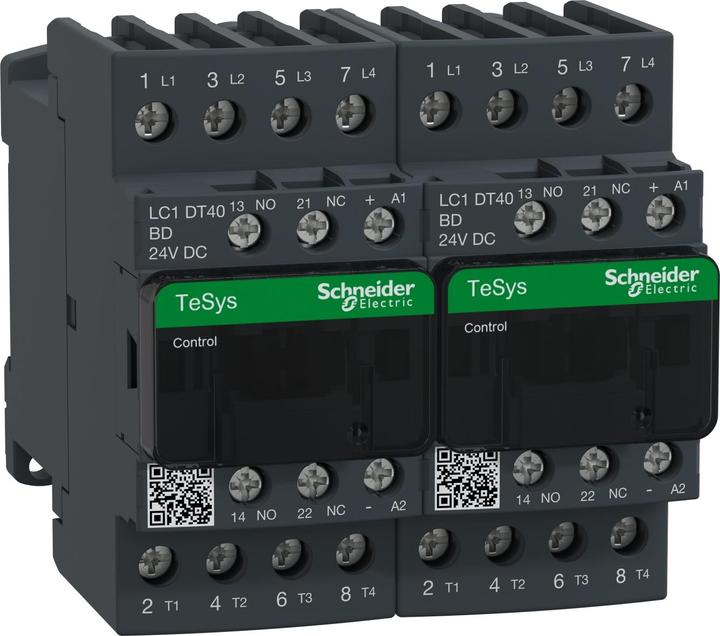

Schneider Electric Reversing contactor combination, 4p, 40A/AC1, LC2DT40BD

Ratings
Currently out of stock
Free shipping starting at 30,–

Product details

Schneider Electric reversing contactor combination LC2DT40BD

Manufacturer: Schneider Electric
Designation: Reversing contactor combination 40A/AC1
Type: LC2DT40BD
Function: Changeover contactor
Rated control voltage Us at DC: 24 V
Type of actuation voltage: DC
Rated operational current Ie at AC-1, 400 V: 40 A
Rated operational current Ie at AC-3, 400 V: 25 A
Number of NO contacts as main contacts: 4
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit: Screw connection
Type of protection (IP): IP20
Type of protection (NEMA): Other
Rail mounting possible: No

Further details: 4-pole reversing contactor combination TeSys D for applications up to 40A/AC1. 24V DC coil, built-in auxiliary contacts 1S+1NC, can be used in safety applications thanks to its certified S-mirror contact. Compact design for high reliability and durability. Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHS/REACH).

Key specifications

Relay type
Contactor relay
input voltage
24 V
Output voltage
440 V
Electric current output
40 A
Number of poles
4x

General information

Item number
33585536
Manufacturer
Schneider Electric
Category
Relays
Manufacturer No.
LC2DT40BD
Release date
17.5.2023

Relay properties

Relay type
Contactor relay
input voltage
24 V
Output voltage
440 V
Electric current output
40 A
Switching function
Changer
Number of openers
1x
Number of closers
2x
Number of poles
4x

Smart home features

Smart home
Not compatible

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
98 mm
Width
90 mm
Height
91 mm
