Schneider Electric Reversing contactor LC2D65AB7

Ratings
Currently out of stock
Free shipping starting at 30,–

Product details

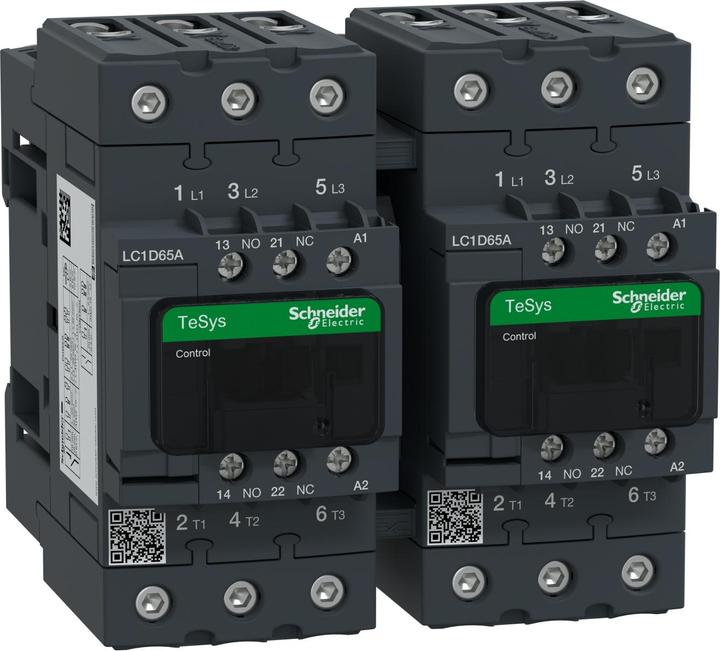

Schneider Electric reversing contactor LC2D65AB7

Manufacturer: Schneider Electric
Designation: Reversing contactor 3P, 65A, 24V 50/60Hz
Type: LC2D65AB7
Function: Reversing contactor
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at AC 60 Hz: 24 V
Type of voltage for actuation: AC
Rated operating current Ie at AC-3, 400 V: 65 A
Rated operating power at AC-3, 400 V: 30 kW
Rated operating power NEMA: 29.8 kW
Number of NO contacts as main contacts: 3
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): Other
Rail mounting possible: No

Further details: 3-pole reversing contactor TeSys D for motor applications. Rated 65A AC-3 30kW at 400V, includes one 24V 50/60Hz AC coil, 2 NC + 2 NO auxiliary contacts, one mechanical interlock.

Key specifications

Relay type
Contactor relay
input voltage
24 V
Output voltage
24 V
Electric current output
65 A
Output current type
AC
Number of poles
3x

General information

Item number
33594614
Manufacturer
Schneider Electric
Category
Relays
Manufacturer No.
LC2D65AB7
Release date
17.5.2023

Relay properties

Relay type
Contactor relay
input voltage
24 V
Output voltage
24 V
Electric current output
65 A
Output current type
AC
Switching function
Changer
Number of openers
1x
Number of closers
1x
Number of poles
3x
Max. Switching capacity
30 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Scope of delivery

Scope of delivery
2 NC+2 NO auxiliary contacts, a mechanical locking mechanism., includes a 24V 50/60Hz AC coil, TeSys D 3-pole reversing contactor for motor applications. Nominal value 65A AC-3 30kW400V

Product dimensions

Length
120 mm
Width
119 mm
Height
122 mm
