Product details

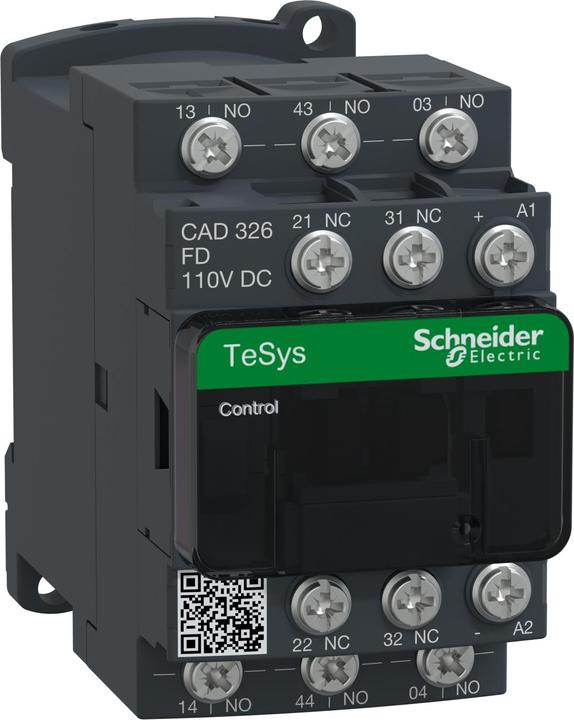

Schneider Electric auxiliary contactor CAD326FD
Manufacturer: Schneider Electric
Designation: Auxiliary contactor
Type: CAD326FD
Rated control supply voltage Us at DC: 110 V
Voltage type for actuation: DC
Rated operating current Ie, 400 V: 10 A
Connection type auxiliary circuit: Other
Mounting type: DIN rail/screw
Interface: No
Number of auxiliary contacts as NC contacts: 2
Number of auxiliary contacts as NO contacts: 3
With LED indicator: No
Suitable for manual operation: No
Schneider Electric auxiliary contactor CAD326FD is a TeSys D auxiliary contactor for utilization categories AC-15 to 690V and DC-13 to 440V. It has 5 contacts (3S + 2Ö), a 110V DC coil with an integrated overvoltage protection module, and connection via ring cable lug screw terminals. Designed for demanding applications with high operating speeds up to 10,800 cycles per hour, it ensures high reliability and durability. It meets multiple standards (IEC, UL, CSA, CCC, EAC, Marine) and has Green Premium conformity (RoHS/REACH).
Relay type | Contactor relay |
input voltage | 110 V |
Electric current output | 10 A |
Output current type | DC |
Item number | 33589667 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer No. | CAD326FD |
Release date | 17.5.2023 |
Relay type | Contactor relay |
input voltage | 110 V |
Electric current output | 10 A |
Output current type | DC |
Number of openers | 2x |
Number of closers | 3x |
Smart home | Not compatible |
Country of origin | Indonesia |
Manufacturer commitment | RE100, SBTi |
Scope of delivery | 2 openers, 3 Closers |
Length | 55.50 mm |
Width | 27 mm |
Height | 56 mm |
