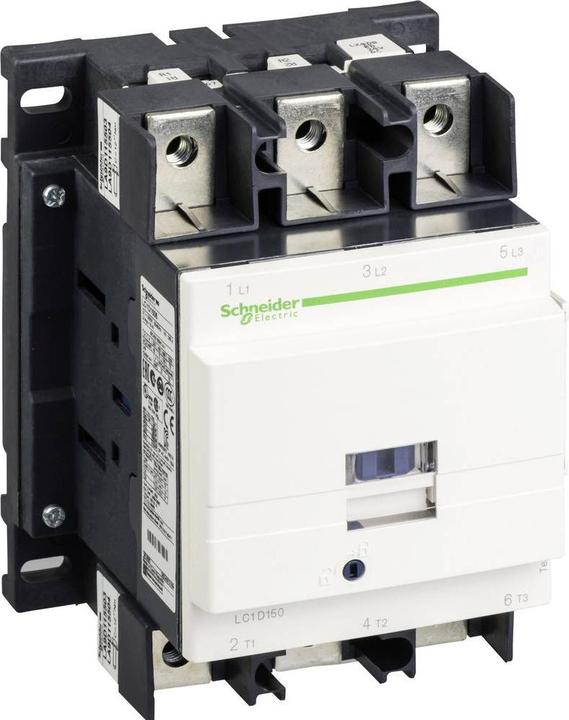

Schneider Electric power contactor LC1D1506R7

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D1506R7
Rated control supply voltage Us at AC 50 Hz: 440 V
Rated control supply voltage Us at AC 60 Hz: 440 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 200 A
Rated operational current Ie at AC-3, 400 V: 150 A
Rated operational power at AC-3, 400 V: 75 kW
Rated operational current Ie at AC-4, 400 V: 50 A
Rated operational power at AC-4, 400 V: 22 kW
Suitable for series installation: No
Number of auxiliary contacts as NO: 1
Number of auxiliary contacts as NC: 1
Connection type main circuit: Other
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 75 kW, rated operational current Ie at AC-3, 400 V: 150 A, coil: 440 V AC.
Dimensions (WxHxD): 120 x 158 x 136 mm, weight: 2.5 kg.
Category: AC-3, AC-1, AC-4.
Integrated bidirectional amplitude limiting diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications according to CSA, DNV, RINA, LROS, GOST, UL, CCC, BV, GL.
Product standards: EAN: 3389110528893.
