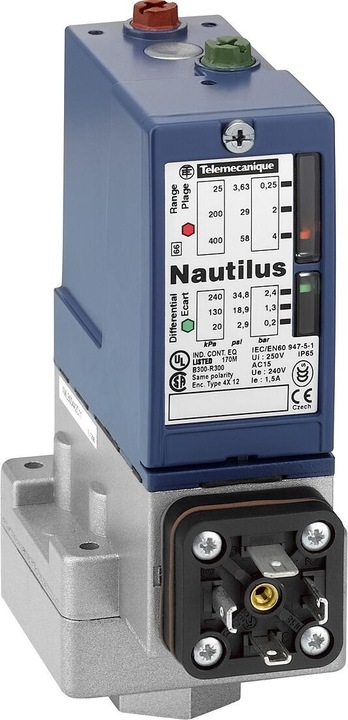

TE Sensors Vacuum regulator XMLBM02V2C11 Manufacturer :TE Sensors Designation :Vacuum regulator Type :XMLBM02V2C11 Suitable as monitor :yes Suitable as 2-point regulator :yes Suitable as limiter :yes Max. Working pressure :-10 hPa Switch-on pressure :-0.87..-0.01 bar Initial setting :-870..-10 hPa Switch-off pressure :-1..-0.14 bar Final setting :-1000..-140 hPa Pressure switching differential :0.67 bar Max. test pressure :9 bar Burst pressure :0.67 bar Test pressure :9 bar Burst pressure :18 bar Medium temperature :0..70 °C Thread size :other Rated operating voltage Ue at AC 50 Hz :120..240 V Rated operating voltage Ue at AC 60 Hz :120...240 V Rated operating voltage Ue at DC :250 V Initial value Pressure measuring range :0 Pa Final value Pressure measuring range :0 Pa Rated operating power at AC-3, 400 V :0 kW Switching capacity at AC-3, 240 V :0 kA Rated operating current Ie at AC-1, 400 V :0 A Rated operating current Ie at AC-3, 400 V :0 A Number of auxiliary contacts as changeover contacts :1 Type of electrical connection :other Adjustable current range :0 A With manual override :no With manual on/off switch :no Electronic version :no With display :no Explosion-proof :no Protection class (IP) :IP65/IP67 Protection class (NEMA) :other Height :158 mm Width :55 mm Depth :77.5 mm TE Sensors vacuum regulator XMLBM02V2C11: more details XMLB vacuum switch 1 bar, adjustable hysteresis, 2 switching points, 1 NC or 1 NO contact, DIN. EAN: 3389110712681.
