Schneider Electric Ultrasonic sensor GER MESV D30 4M 4-20mA M12
Product details

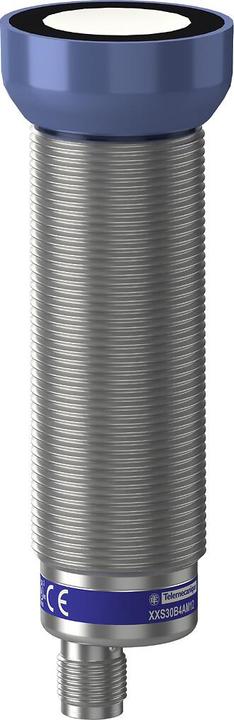

Schneider Electric Ultrasonic Sensor XXS30B4AM12
Manufacturer: Schneider Electric
Designation: Ultrasonic Sensor SN=4M, 4-20mA, M12
Type: XXS30B4AM12
Analog Output Range: 4 mA ... 20 mA
Electrical Connection Type: M12 Connector
Dead Zone: 420 mm
Sensor Width: 40 mm
Sensor Height: 30 mm
Sensor Length: 74.7 mm
Sensor Diameter: 30 mm
Adjustment Method: Other
Measurement Range Length: 420..4000 mm
Protection Class (IP): IP67
Ambient Temperature: -25..70 °C
Supply Voltage: 12..24 V
Relative Repeatability Accuracy: 0.1 %
Voltage Type: DC
Synchronization Possible: Yes
Material of the Sensor's Active Area: Other
Housing Material: Brass
Schneider Electric Ultrasonic Sensor XXS30B4AM12: Additional Details
Ultrasonic sensor with a housing diameter of 30 mm. Metal construction. Connection via M12 plug, range of 4 m. Analog output 4-20 mA.
Item number | 31188642 |
Manufacturer | Schneider Electric |
Category | Home automation |
Manufacturer no. | XXS30B4AM12 |
Release date | 19.9.2022 |
Automation type | Sensor |
Range | 4 m |
Manufacturer Type | XXS30B4AM12 |
Electric current output | 0.02 A |
Power supply | Electrical connection |
Country of origin | USA |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Range 4m. Analogue output 4-20 mA., Ultrasonic sensor with 30 mm housing diameter. In metal design. Connection via M12 plug connection |
Length | 74.70 mm |
Width | 40 mm |
Height | 30 mm |
