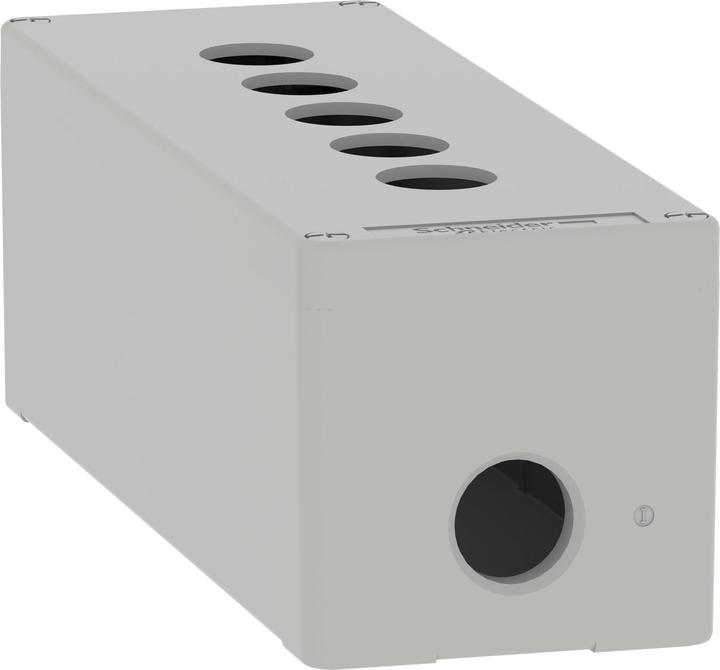

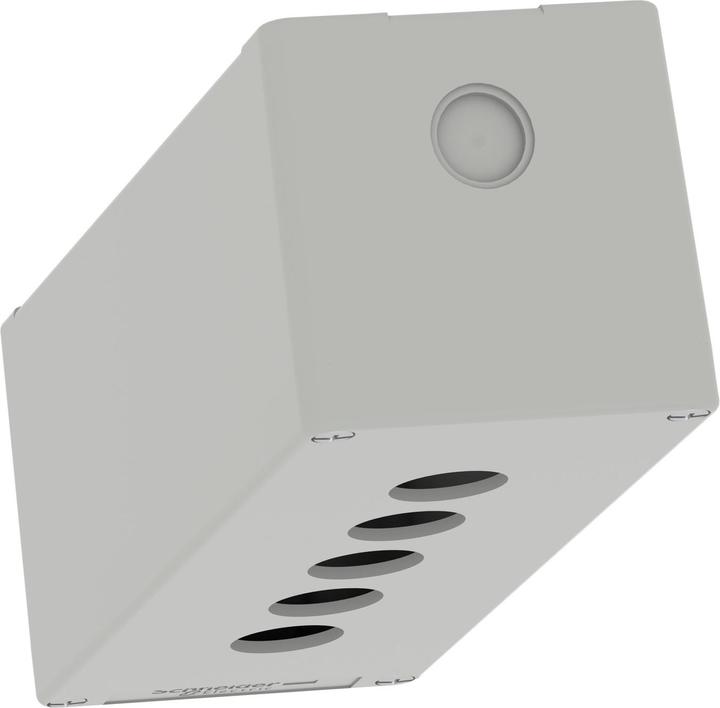

Schneider Electric Empty Enclosure XAP, Metal XAPD4505

Manufacturer: Schneider Electric
Description: Empty enclosure XAP, gray metal, for 5x22mm
Type: XAPD4505
Number of control points: 5
Enclosure design: Surface-mounted enclosure
Material of the enclosure: Zinc
Material quality of the enclosure: Other
Diameter of the openings: 22.5 mm
Color of the enclosure top: Gray
Protection class (IP): IP65/IP67
Protection class (NEMA): Other
Width: 80 mm
Height: 220 mm
Depth: 77 mm

Schneider Electric Empty Enclosure XAP, Metal XAPD4505: Additional Details
Empty enclosure from the Harmony XAP series. Made of metal with a zinc alloy. Color: gray, with a hole for 5 x 22mm. Size of the enclosure: 80x220x77. Equipped with an M25 cable entry. IP protection classes up to IP69K and ambient temperatures from -25°C to +70°C. The modular Harmony pushbutton series with 22mm or 30mm installation dimensions combines easy installation, efficiency, modern design, flexibility, and maximum robustness. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). EAN: 3389119011419.
