TE Sensors Proximity Switch XS512BLPBL2

Manufacturer: TE Sensors
Designation: Proximity Switch M12 PNP Nc 3-Lm
Type: XS512BLPBL2
Length of the sensor: 53 mm
Diameter of the sensor: 12 mm
Mechanical installation condition for the sensor: flush
Switching distance: 2 mm
Suitable for safety functions: no
Type of switching function: Normally Open
Type of switching output: PNP/PNP
Type of electrical connection: radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface design: none
Interface design for safety-related communication: none
Housing design: cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at the safe output: 200 mA
Supply voltage: 12..48 V
Rated control supply voltage Us at DC: 12..48 V
Type of voltage: AC/DC
Switching frequency: 5000 Hz
With monitoring function for downstream devices: no
Material of the housing: metal
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic static fields

TE Sensors Proximity Switch XS512BLPBL2: additional details

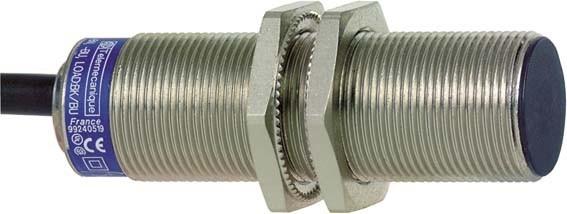

This OsiSense XS cylindrical (M12 thread) inductive proximity sensor features a PPS sensing face and a nickel-plated brass housing. It has a switching distance of 2 mm, normally open PNP output, and comes pre-wired (2 m cable). It operates with a supply voltage of 12 to 48 VDC. This universally applicable inductive proximity sensor with cylindrical thread can be flush mounted. Thanks to its external thread and double nuts, it can be directly mounted on a surface or bracket and is certified by CCC, CSA, and UL.
