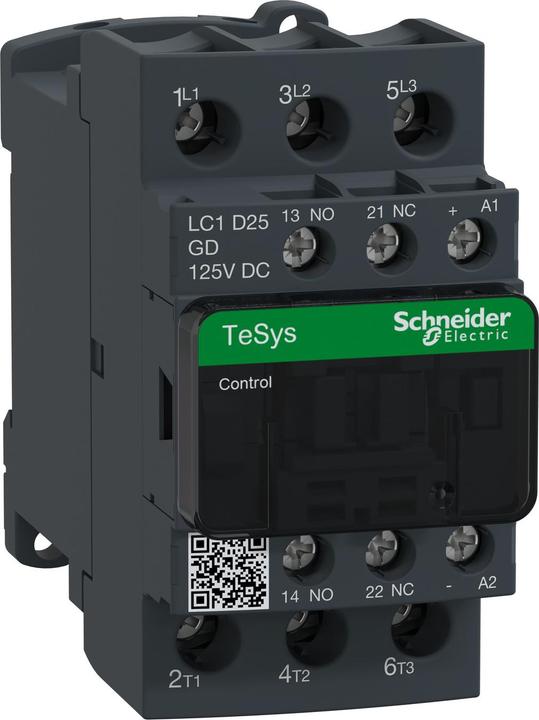

Schneider Electric power contactor LC1D25GD

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D25GD
Rated control supply voltage Us at DC: 125 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 40 A
Rated operational current Ie at AC-3, 400 V: 25 A
Rated operational power at AC-3, 400 V: 11 kW
Rated operational current Ie at AC-4, 400 V: 12 A
Rated operational power at AC-4, 400 V: 5.5 kW
Suitable for series installation: No
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC. Rated operational power at AC-3, 400 V: 11 kW. Rated operational current Ie at AC-3, 400 V: 25 A. Coil: 125 V DC.
Dimensions (WxHxD): 45 x 85 x 101 mm
Weight: 0.53 kg
Category: AC-1, AC-4, AC-3
Integrated bidirectional amplitude limiting diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications: UL, CSA, GOST, RINA, GL, CCC, LROS, DNV, BV.
Product standards: EAN: 3389110356557.
