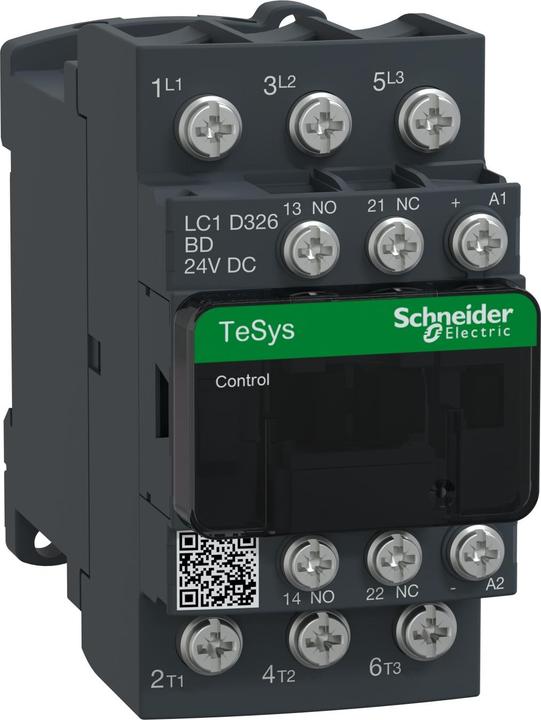

Schneider Electric power contactor LC1D326BD

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D326BD
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 50 A
Rated operational current Ie at AC-3, 400 V: 32 A
Rated operational power at AC-3, 400 V: 15 kW
Rated operational current Ie at AC-4, 400 V: 18 A
Rated operational power at AC-4, 400 V: 7.5 kW
Suitable for series installation: No
Number of auxiliary contacts as NO: 1
Number of auxiliary contacts as NC: 1
Connection type main circuit: Other
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC. Rated operational power at AC-3, 400 V: 15 kW. Rated operational current Ie at AC-3, 400 V: 32 A. Coil: 24 V DC.
Dimensions (WxHxD): 45 x 85 x 101 mm
Weight: 0.535 kg
Category: AC-3, AC-4, AC-1.
Integrated bidirectional amplitude limiting diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts.
Certifications according to RINA, GL, UL, DNV, BV, CSA, CCC, LROS (Lloyds Register of Shipping), GOST.
Product standards according to EAN: 3389110807967.
