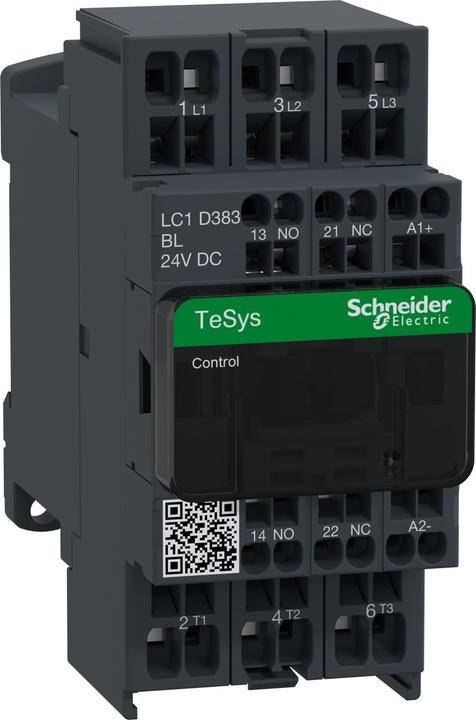

Schneider Electric power contactor LC1D383BL

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D383BL
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 50 A
Rated operational current Ie at AC-3, 400 V: 38 A
Rated operational power at AC-3, 400 V: 18.5 kW
Rated operational current Ie at AC-4, 400 V: 18 A
Rated operational power at AC-4, 400 V: 7.5 kW
Suitable for series installation: No
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: Spring-cage connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V 18.5 kW, rated operational current Ie at AC-3, 400 V 38 A, coil 24 V DC. Dimensions (WxHxD): 45x85x101 mm, weight: 0.54 kg. Category: AC-1, AC-3. Integrated bidirectional amplitude limiter diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts. Certifications according to LROS, GOST, CCC, RINA, BV, CSA, DNV, GL, UL. Product standards according to UL 508, EN/IEC 60947-4-1, EN/IEC 60947-5-1, CSA C22.2 No 14. EAN: 3389110809268.
